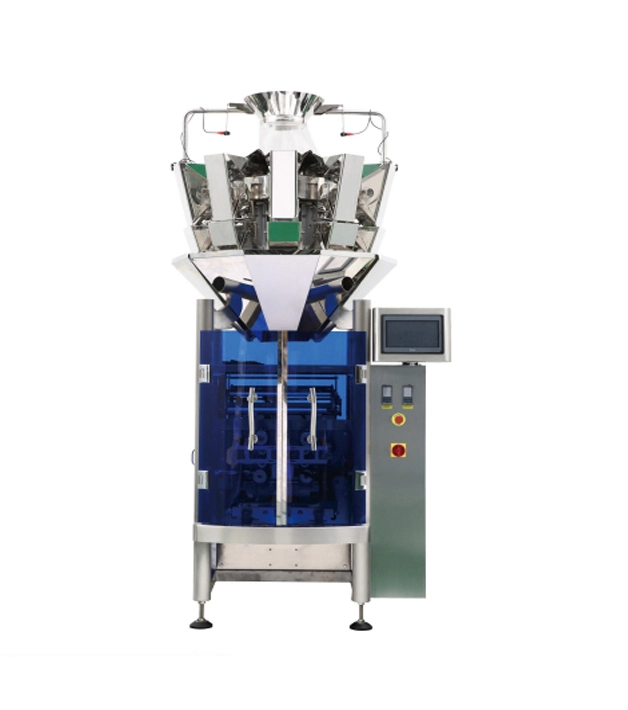

Vertical Powder Filler Deal Stable Performance For Granules Processing Packing Machine

Product features:

Stainless steel, welding, rounded corners, and the least amount of dust.
1.Modular control system, easy to maintenance and low cost.
2.Professional professional digital weighing module, better stability and high precision.
3.Modular stepper motor drives, maintenance more convenient, cost is low.
4.IP65 waterproof and dustproof design, more suitable for damp, dusty work.
5.Control weighing feeding function in order, avoid the material jam.
6.Separate adjusting amplitude, operation more convenient.
7.PLC control with touch panel-step by step instruction.
8. Equipped with servo winding system, pneumatic control system.
9.The maximize to improve the whole machine precision, reliability and stability.
8. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
11.The perfect automatic alarm safety protection, little waste. The machine will automatically complete all packing processes from feeding, measuring, filling, printing, finished bag.

Share:

Product Description

Product Introduction:

It’s suitable to use in packing the high accuracy and easy fragile material, such as puffy food, crispy rice, jelly, candy, pistachio, photo chips, dried fruits, dumpling, chocolate, pet food, small hard wares, medicine, and etc.

Product parameters:

ModelJS-320wJS–380WJS–420WJS–520W
Packing Range10 – 5000g1-500g10-1000g10-1000g
Bag Making ModeSPillow-type bag; Stand-type/Gusset bag; Punch device; Link-bag deviceSPillow-type bag; Stand-type/Gusset bag; Punch device; Link-bag deviceSPillow-type bag; Stand-type/Gusset bag; Punch device; Link-bag deviceSPillow-type bag; Stand-type/Gusset bag; Punch device; Link-bag device
Packing Accuracy±0.2-0.5%±0.2-0.5%±0.2-0.5%±0.2-0.5%
Speed20-60 bags/min25-80 bags/min26-60 bags/min20-50 bags/min
Film MaterialPOPP/CPP; POPP/VMCPP; BOPP/PE; PET/VMPET/PE; PET/AL/PE; PET/PETPOPP/CPP; POPP/VMCPP; BOPP/PE; PET/VMPET/PE; PET/AL/PE; PET/PETPOPP/CPP; POPP/VMCPP; BOPP/PE; PET/VMPET/PE; PET/AL/PE; PET/PETPOPP/CPP; POPP/VMCPP; BOPP/PE; PET/VMPET/PE; PET/AL/PE; PET/PET
Film Width<320 mm<380 mm<420 mm<520 mm
Bag Width70-150 mm50-180mm80-200mm90-250mm
Bag Length50-200 mm
Pulling film two times can max length 300mm
50-200mmPulling film two times can max length 300mm50-300mm
Pulling film two times can max length 400mm
80-300mm
Pulling film two times can max length 450mm
Power3.7kw4kw4kw4.5kw
Dimension(L*W*H)1100*800*1940 mm1300*820*2300 mm1720*1030*2254 mm1896*1182*2430 mm
Weight350kg400kg450kg500kg
