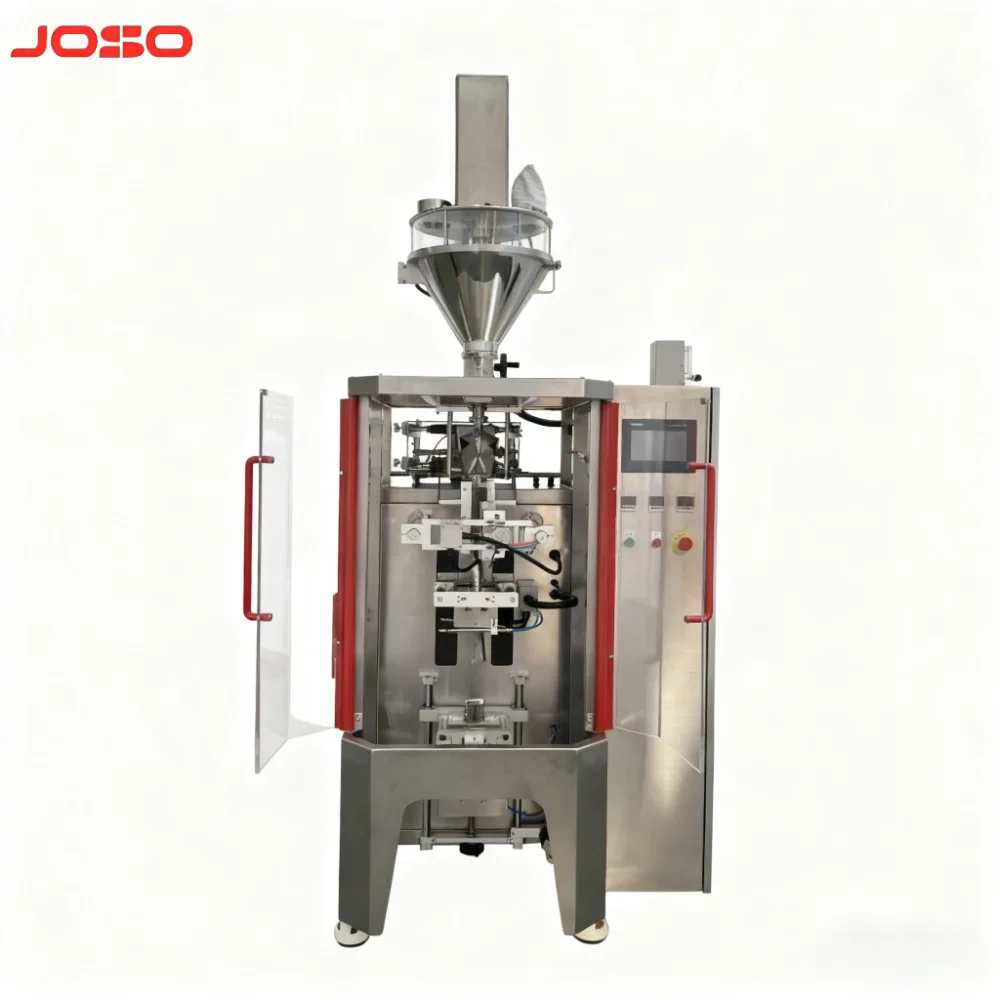

Vertical Form Fill Seal Machine Automatic Packaging For Food And Powder

Product features:

1. PLC control, touch screen, man-machine interface. Easy to operate. With errors indication system, helping handle the trouble immediately.

2. Adopt the newest screw head feeding the material, especially suit for poor fluidity powder. High precision measurement, high speed. For different packing specification, just change the screw part.

3. Adopt the servo motor the control pull film of bag making machine. Precise control of the length of the bag.

4..Adopt the servo motor for the sealing part, running smoothly, low noise. Adjust the sealing pressure easy. Suitable for all kings of packing material with different thickness.

Inquire Now

Contact Us

Tags:

Product Description

Product Introduction：

This Automatic vertical powder packaging machine automatic finish powder measuring, powder filling, bag forming, bag sealing and sealing working processes etc. This machine is suitable for packing the high accuracy and easy fragile material, like milk powder, flour powder, protein powder, tea powder, food powder, medical powder, etc.

Product parameters：

Model	JS–320	JS–420	JS–520
Packing Range	1-500g	10-1000g	10-1000g
Packing Accuracy	±0.2-0.5%	±0.2-0.5%	±0.2-0.5%
Speed	30-50 bags/min	30-50 bags/min	25-45 bags/min
Film Width	<320	<420	<530
Bag Width	<150	<200	<250
Bag Length	<200	<300	<320
powder	3KW	3.7KW	4.2KW
*Dimension(LWH)*	12008002100 mm	15009502500 mm	150011602600 mm
