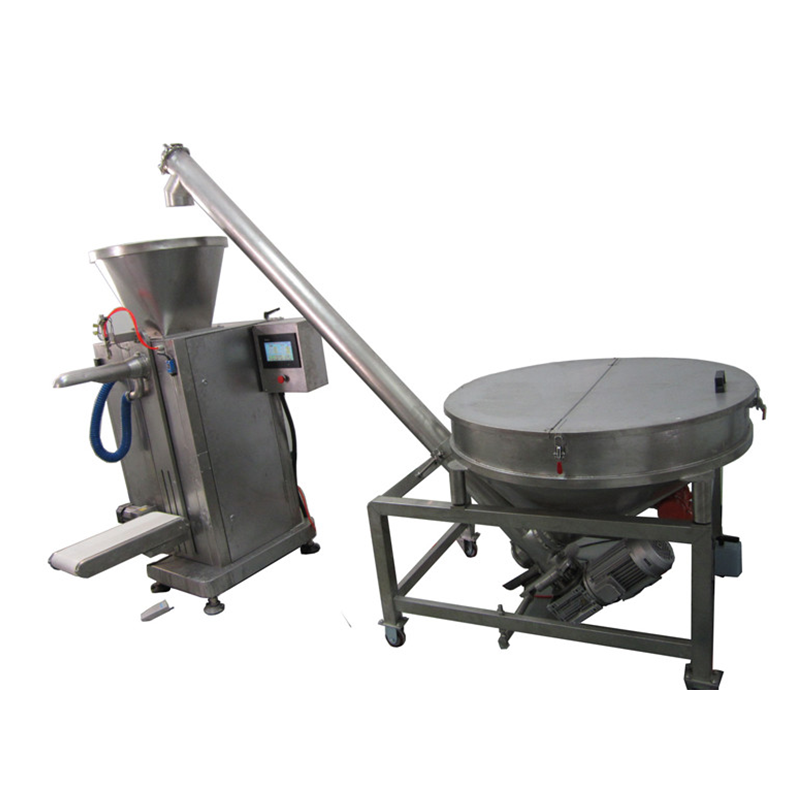

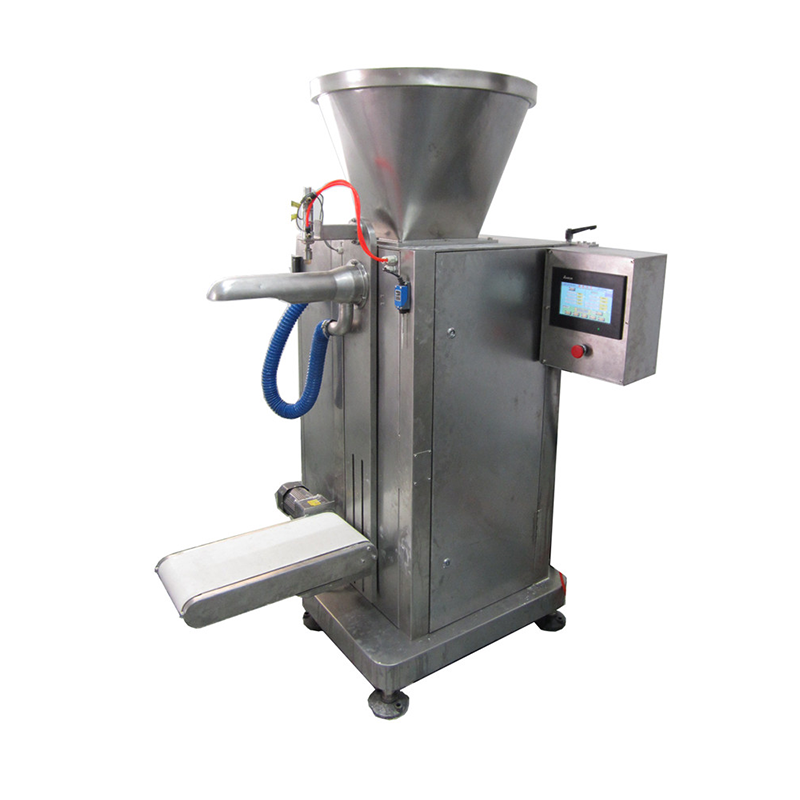

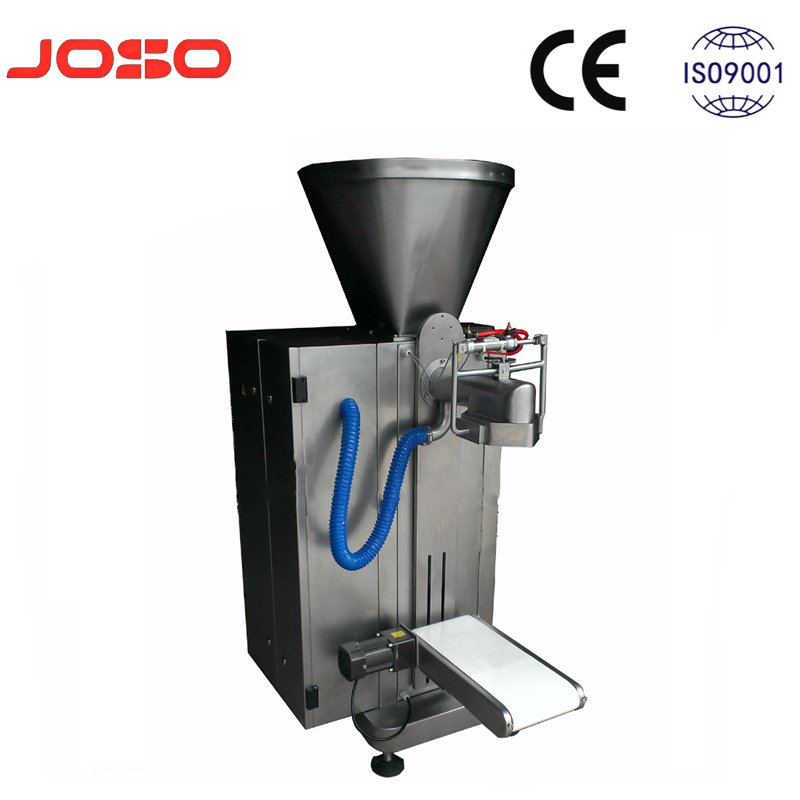

Valve Bag Powder Packing Machine

Valve Bag Powder Packing Machine

This valve bag packing machine is ideal for industries requiring precise and hygienic powder packaging, such as food, pharmaceuticals, and chemicals. Designed to meet GMP standards, it efficiently handles materials like milk powder, rice flour, feed, glucose, additives, and dyes. Suitable for cleanroom or dust-controlled environments, it ensures accurate filling of ultra-fine or granular powders, improving production efficiency and maintaining product quality.







Main features

1.The machine’s main components are made of stainless steel, making it suitable for GMP compliance, food hygiene certification, and anti-corrosive chemical packaging applications.

2.Designed for open-mouth bags, the system performs direct weighing and transfers material into the bag after accurate measurement.

3.Features a high-speed screw feeder with a dual-spiral pipe design that effectively collects dust, significantly reducing pollution in the workshop.

4.Equipped with a vibrating hopper to handle sticky materials. Dual weight sensors provide stable operation, reduce resonance, and offer higher weighing sensitivity.

5.Includes a conveyor belt system for increased automation. The machine also supports calibration procedures, with built-in weights and calibration hooks for easy maintenance and accuracy checks.

Main Technical Data

ModelJS-1C3-CJS-1C5-F
MeasurementWeighing type
Feeding waySingle screw feeder
Packaging weight5—50Kg
Packaging accuracy<±0.2%
Packing speed<3bags/min
Gas pressure0.5-0.8Mpa
Total power0.75KW
Weight400Kg
Dimension (L×W×H)1100x900xl900mm
