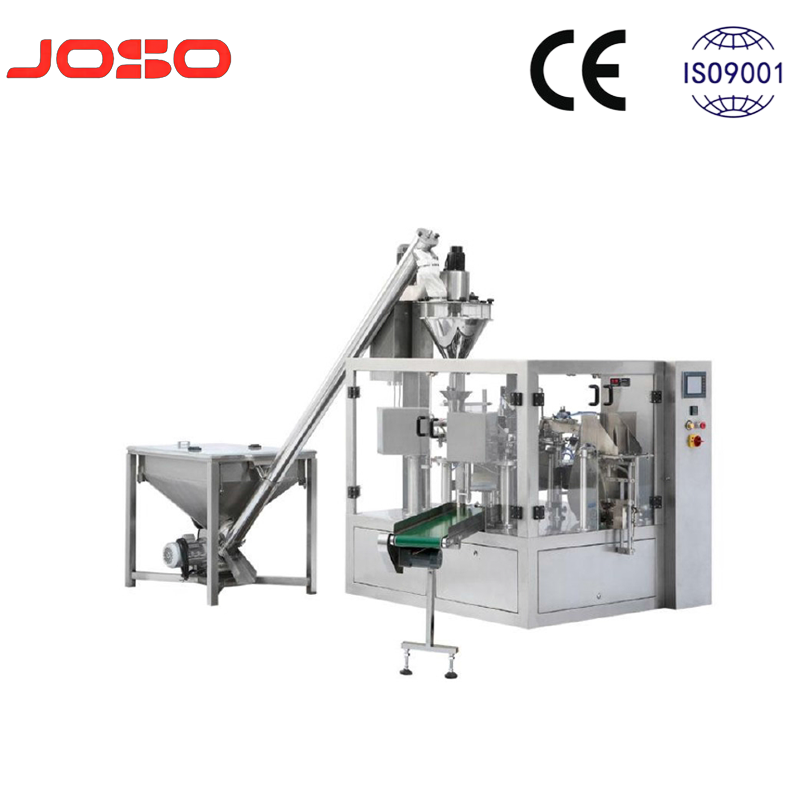

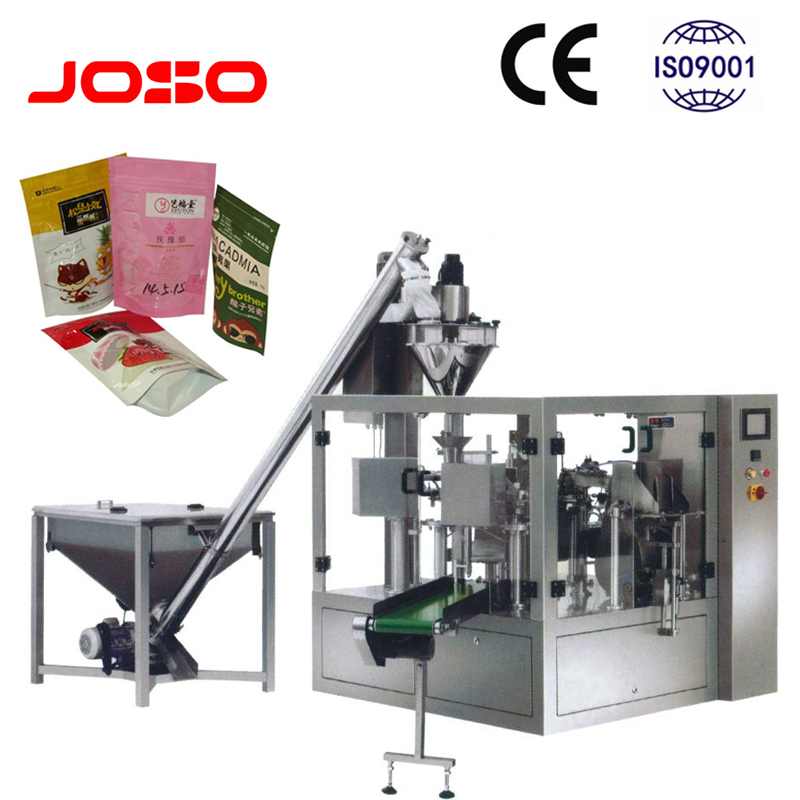

Stainless Steel Small Packaging Automatic Soft Bag Packaging Machine
Stainless Steel Small Packaging Automatic Soft Bag Packaging Machine
This stainless steel small automatic packaging machine is designed according to national GMP standards and is ideal for packaging various powders and granules such as candy, chocolate chips, milk powder, sugar, and food additives. It supports automatic measuring and filling, adaptable to different bag sizes, weights, and packaging speeds. Suitable for food, pharmaceutical, and chemical industries, this machine ensures efficient, hygienic, and precise packaging, making it an excellent choice for small to medium-sized production lines.
Main Features
Complies with national GMP standards; all material-contact parts are made of 304 stainless steel.
PLC and touch screen control system for stable operation and strong anti-interference capability; supports storage of up to 10 sets of formula parameters.
Filling screw is driven by a high-precision servo motor for accurate dosing.
Maintenance-free gear motor ensures reliable and consistent mixing.
Equipped with weight feedback tracking technology, allowing automatic adjustment of filling weight when switching materials.
Quick-change screw attachments make the machine adaptable to a variety of materials and filling needs.
Fully stainless steel workbench with a clean, neat appearance; easy to clean and maintain.
Main technical data
| Name | Small bag automatic bag packing machine | Automatic bag packing machine for middle bag | High speed automatic bag packing machine |
| Model | JS-200 | JS-300 | JS-200B |
| Bag Lenth | L:80-330mm | L:80-400mm | L:80-330mm |
| Bag Width | W:80-220mm | w:150-300mm | w:150-200mm |
| Station | 6station | 8station | 10station |
| Metering Screw | Φ17-Φ46 | Φ35-Φ100 | Φ35-100Φ |
| Filling Weight | 100-3000g | 100-3000g | 100-3000g |
| Filling Accuracy | ±0.3-1% | ±0.3-1% | ±0.3-1% |
| Filling Velocity | 20-50bags/min | 15-30bags/min | 20-70bags/min |
| Power Supply | 380v 50hz | 380v 50hz | 380v 50hz |
| Power | 3.5kw | 5kw | 5.5kw |
| Gas Consumption | 6kg/cm20.2m3/min | 6kg/cm20.2m3/min | 6kg/cm20.2m3/min |
| Weight | 400kg | 650kg | 700kg |
