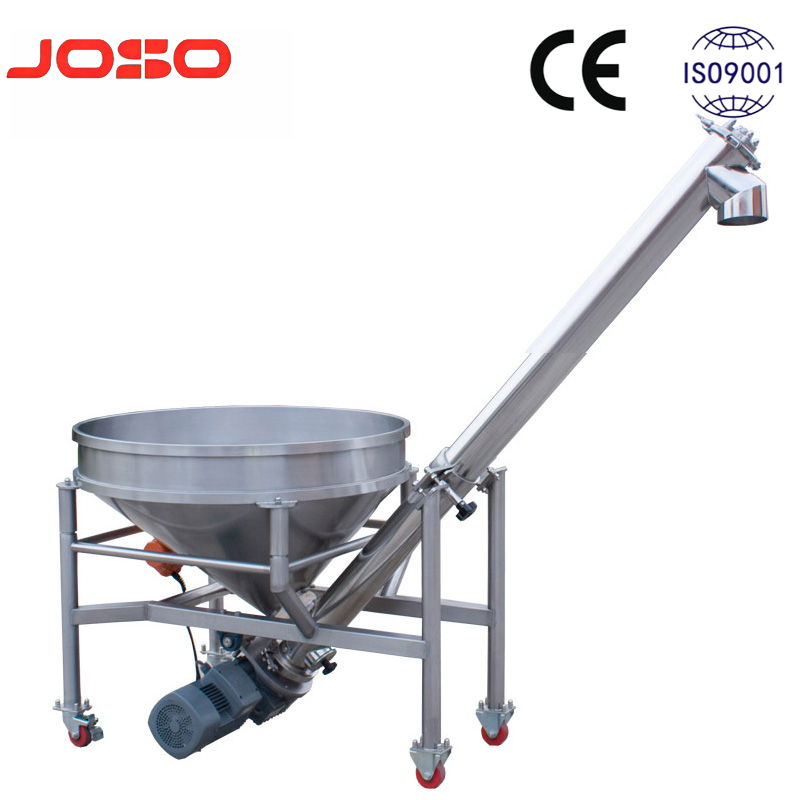

Stainless Steel Screw Conveying Powder Feeding Machine
Stainless Steel Screw Conveying Powder Feeding Machine

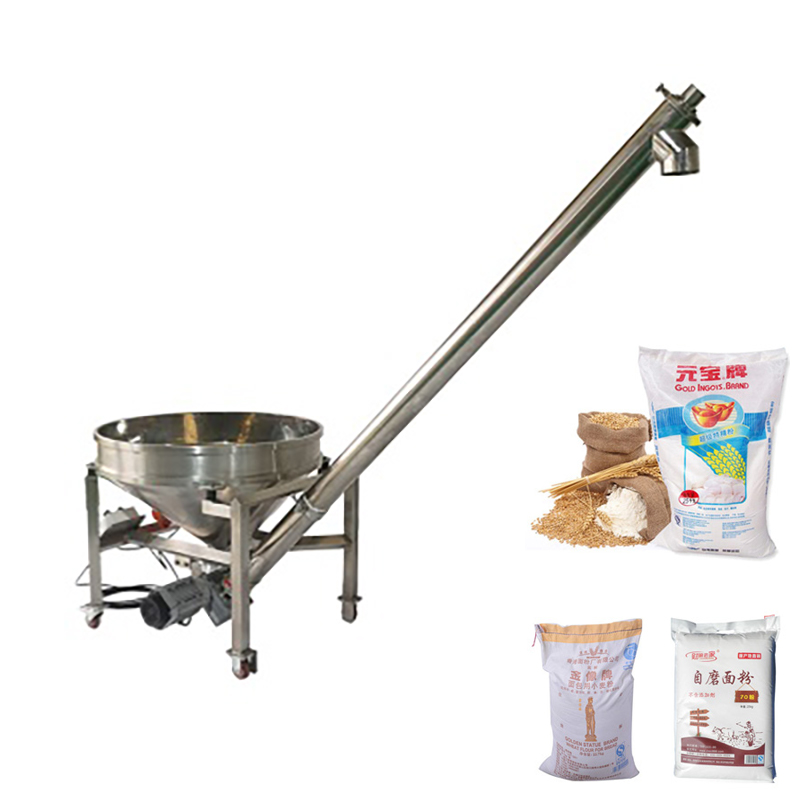

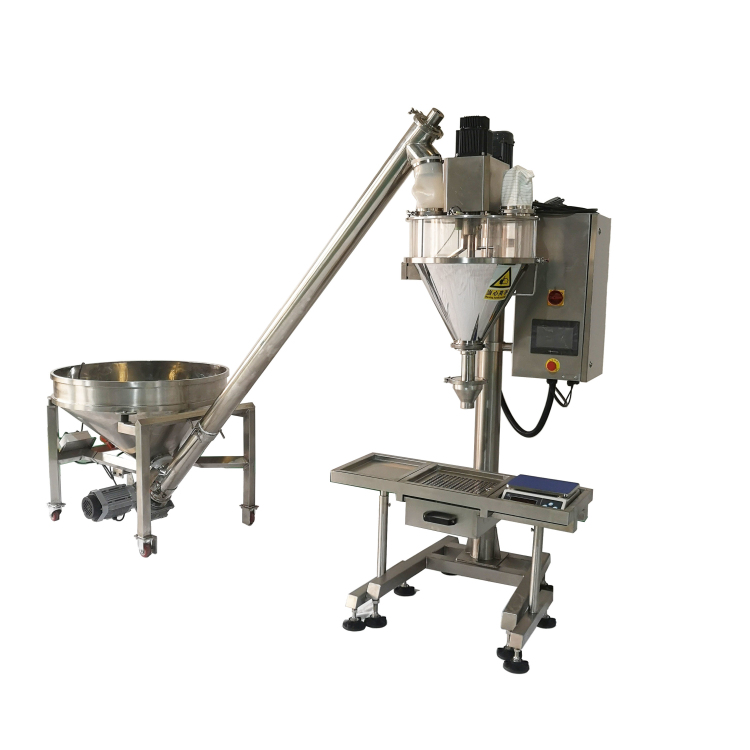

The vibrating screw feeder is ideal for efficiently conveying and feeding various powder materials in automated production settings. Commonly used in the food, pharmaceutical, chemical, and agricultural industries, it is especially suitable for applications involving powders that are prone to bridging or clogging, such as flour, milk powder, starch, additives, and other fine materials. It can work in combination with packaging machines for automatic feeding and level tracking or be used independently for precise dosing and transport. Its modular design, dustproof structure, and intelligent control features make it an excellent choice for clean, reliable, and maintenance-friendly production environments.
Main Features
Equipped with a high-quality, stable vibrating hopper and vibration motor to prevent material bridging; amplitude is adjustable for high-efficiency vibration feeding.
Modular design separates the screw feed tube and vibrating hopper, ensuring smoother operation and easier disassembly for maintenance.
Screw terminal block is fixed with clamps, allowing for quick and convenient removal of the entire screw for cleaning and maintenance.
Clamp-style connections between the powder hopper and screw interface enable fast and easy disassembly.
Can be integrated with sensors and intelligent control systems for automatic material level tracking, feeding control, or overload alarms.
Unique dustproof design effectively protects the bearings from dust contamination.
Main Technical Data
| Type | JS-S1 | JS-S3 | JS-S5 | JS-S8 | JS-S10 |
| Pip Diameter | Φ89 | Φ114 | Φ141 | Φ168 | Φ219 |
| Output | 1-1.5M3 | 2-3M3 | 3-5M3 | 5-8M3 | 8-10M3 |
| Power Supply | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz |
| Power | 0.75-1.1kw | 1.1-1.5kw | 1.5-2.2kw | 2.2-3kw | 4kw |
| Max Feed-in Height | 850mm | 900mm | 900mm | 900mm | 900mm |
| The Highly | 1.6m | 1.8m | 1.8m | 2m | 2m |
| Material Box Volume | 110L | 230L | 230L | 230L | 230L |
