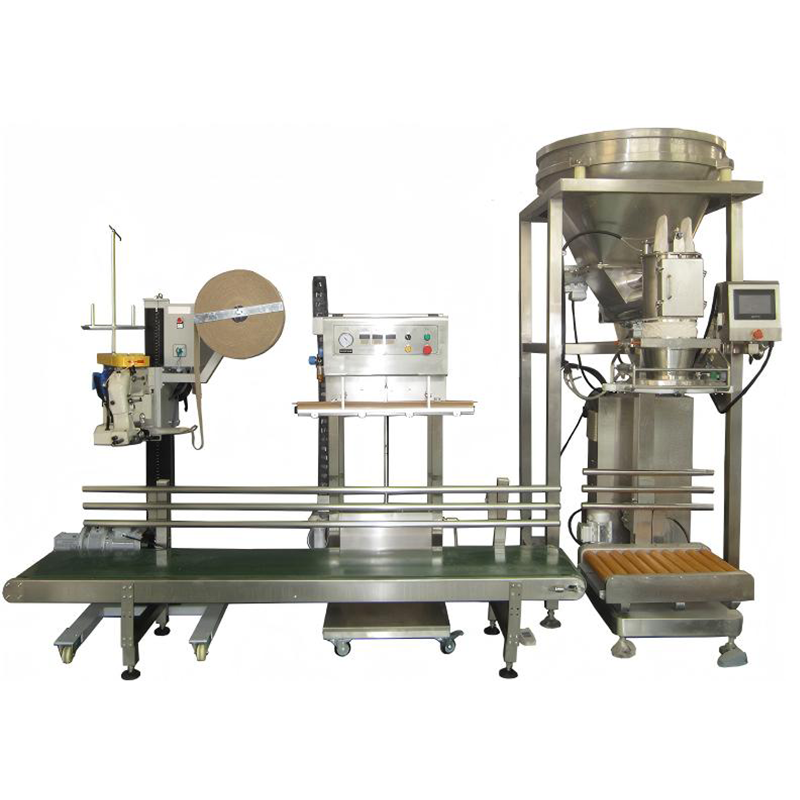

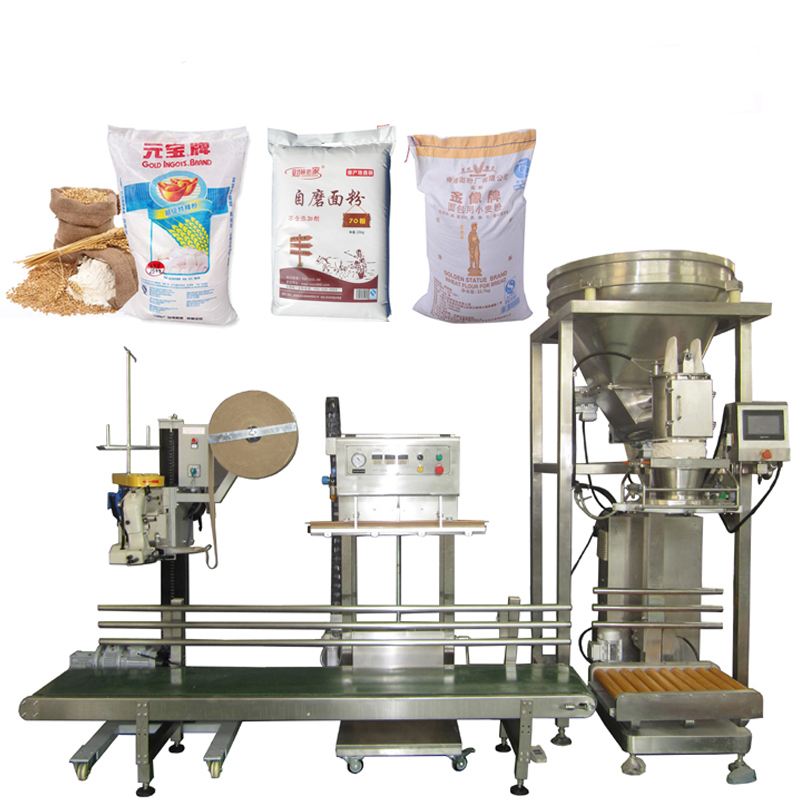

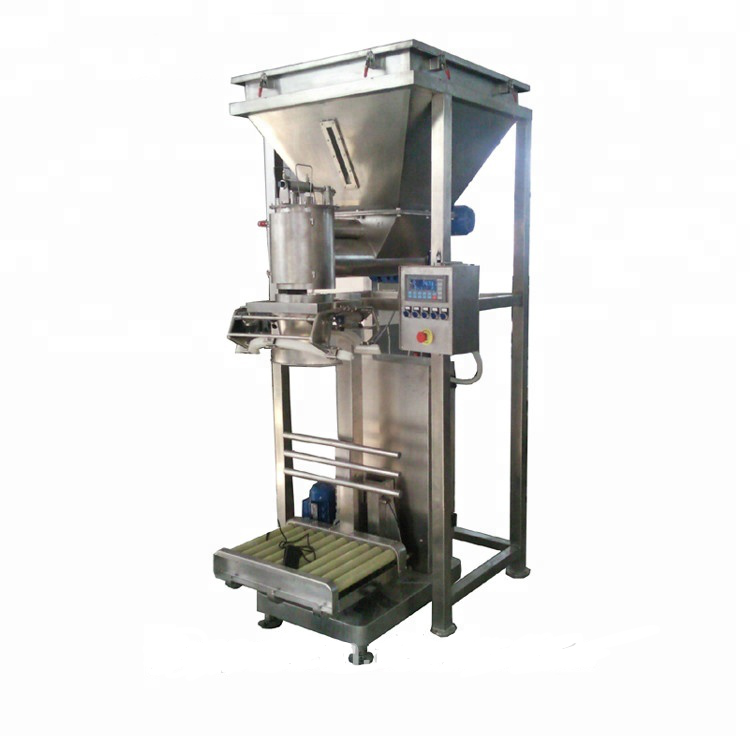

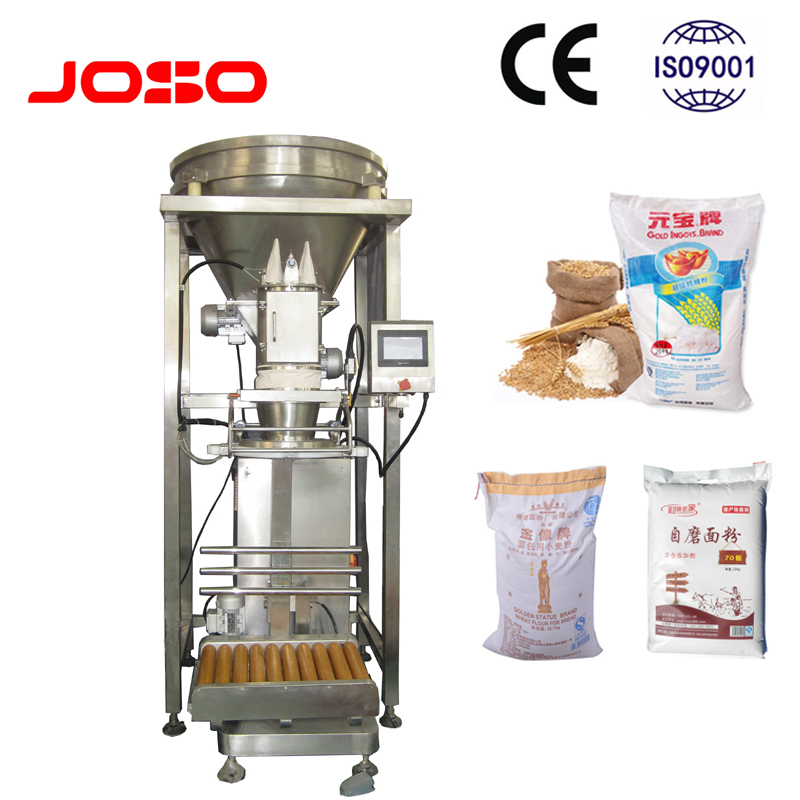

Semi-automatic Granule Packing Machine
Semi-automatic Granule Packing Machine
This automatic powder packaging machine is ideal for high-efficiency packaging operations across various industries. Designed in accordance with national GMP standards, it performs a series of integrated processes including weighing, bag forming, filling, sealing, sewing, and product delivery.
Main Features
Designed in accordance with national GMP standards, meeting the hygienic requirements for food-grade production.
All parts in contact with the product are made of 304 stainless steel, making the machine suitable for packaging anti-corrosive chemical materials.
Equipped with a PLC and touch screen control system featuring automatic error correction, deviation alarms, and other intelligent functions for improved operation.
Utilizes a new-generation weighing system with a high-speed, high-precision measuring instrument that ensures accurate and efficient filling.
Features a combination of roller and PVC conveyor belts (with a stainless steel frame) for smooth product transport. The double screw feeder design ensures stable material flow. Rollers are detachable for easy cleaning, allowing for thorough, dead-angle-free sanitation.
Main Technical Data
| Model | JS-1C1-K |
| Measurement | Weighing type |
| Feeding Way | Valve Vibration Feeder |
| Packaging Weight | 5-50G |
| Packaging Accuracy | ≤±0.2％ |
| Packing Speed | ≤3bags/min |
| Air Pressure | 0.5-0.8Mpa |
| Gas Consumption | 50L/min |
| Total Power | 3.9KW |
| Power supply | 3P AC208-415V 50/60Hz |
| Weight | 400kg |
| Dimension | 4300×1300×2500mm |
