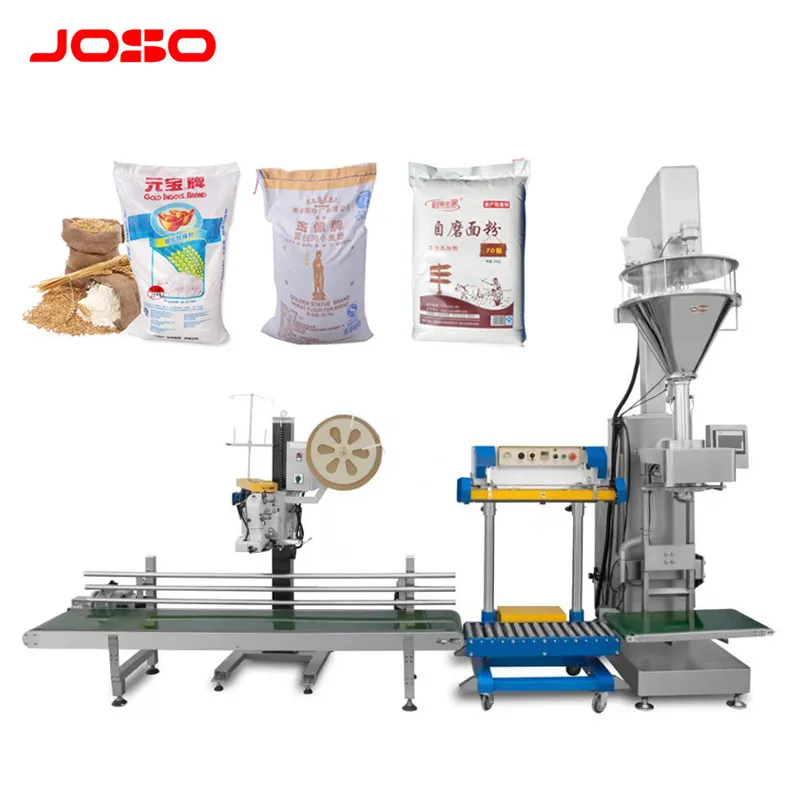

Semi-automatic Big Bag Rice Flour Feed Granules Powder Filling Packaging Machine Combination Production Line
Semi-automatic Big Bag Rice Flour Feed Granules Powder Filling Packaging Machine Combination Production Line
The machine is designed according to the national standard GMP, which suit for ultra-fine powder and high precisionpackaging, Eguipped with the weight sensor, give signal to the machine do the filling and lift work. Wildly used in packing ofadditive, Toner, fire extinguisher powder, superfine powder etc, The main parts of machine is made by 304 stainless steel. Withthe famous brand of the machine body, motor, cylinder, electrical accessories, pneumatic components, pneumatic sealingmachine, sewing machine, and the customer could choose the brand by himself
The machine is designed according to the national standard GMP, which suit for ultra-fine powder and high precisionpackaging, Eguipped with the weight sensor, give signal to the machine do the filling and lift work. Wildly used in packing ofadditive, Toner, fire extinguisher powder, superfine powder etc, The main parts of machine is made by 304 stainless steel. Withthe famous brand of the machine body, motor, cylinder, electrical accessories, pneumatic components, pneumatic sealingmachine, sewing machine, and the customer could choose the brand by himself
Main Features
1. SUS 304 materials, durable and easy to clean.
2. PLC touch sreen control system,high accuracy and easy to operate.
3. Servo motor drives screw auger, work stable with high accuracy.
4. Semi-auto type. Digital display, easy to operate.
5. Weighing sensor and PLC control system.
6. No dust or powder will come out when filling.
7. Related machines available( mixing machine, feeding machine,sealing machine etc.)
Technical Parameters
| Model | JS-2C |
| Packing Weight | 5-50kg |
| Packing Accuracy | ≤±0.2% |
| Packing Speed | 3 bags per min |
| Power Supply | 3P AC208 – 415V 50/60Hz |
| Air Pressure | 0.5-0.8mpa |
| Total Power | 3.9kw |
| Total Weight | 400kg |
| Overall Dimension | 4300×1300×2500mm |
