Powder Auger Filler Automatic Screw Filling Packaging Machine
Powder Auger Filler Automatic Screw Filling Packaging Machine

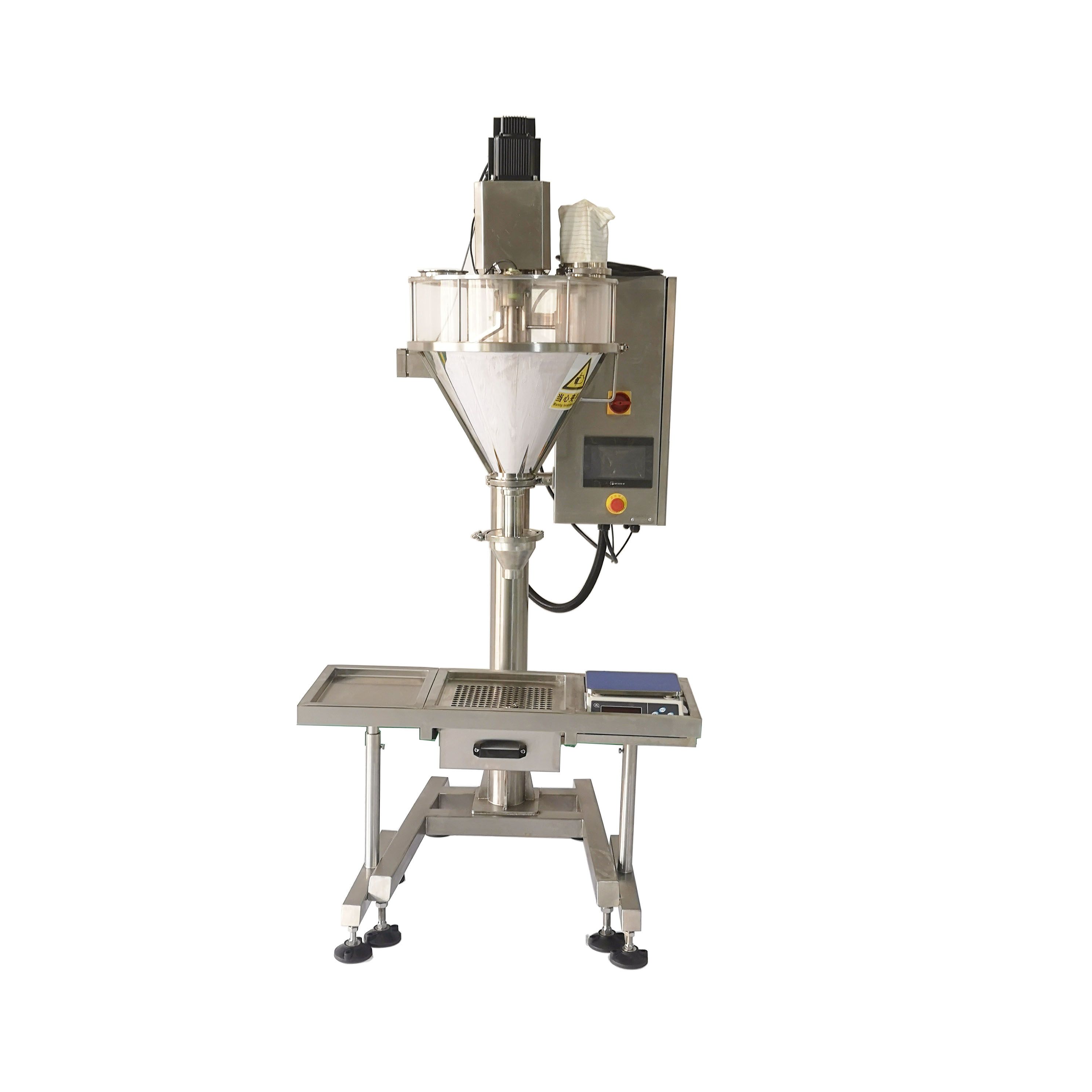

Semi automatic auger type powder filling machine is a compact model applied to dose all kinds of dry powder both free flow and non free flow powder into bags/bottles/cans/jars/etc. The filling was controlled by PLC and servo drive system featured with high speed and good accuracy.
Descriptive abstract
The machine is used for filling all kinds of powderintobottles/cans/jars/tins etc it’s designed according the GMP standard.dueto the special des/gn t fits the fluidicor low fluidity materials packing, such as milk powder,white sugar coffee powder, coffee,aginomoto, solidbeverage, dextrose, pharmaceuticals, and agriculturepesticide, granular additive, dyestuff, and so on.
Main features
1. Fully Stainless Steel Structure, quick disconnect hopper or split hopper, easy to clean.
2.With Siemens PLC, Seimens touch screen and TECO Servo Motor /Driver
3.Servo motor and servo drive control the filling auger.
4.With 10 Product Recepit Memory
5.Change the auger dosing tool, it could filling various kind of material including the powder to granule.
Main Technical Data
| Model | JS-1A1 | JS-1A3 | JS-1B3 |
| Measuring Method | Weighing feedback tracking spiral filling type | ||
| Packing Weight | 0.2-100g | 1-500g | 10-5000g |
| Packing accuracy | ≤±2% | ≤100g ≤0.5-1g , ＞100g≤0.3-01% | ≤100g ≤0.5-1g , ＞100g ＜1000g ≤±0.3-1% ， ≥1000g ≤0.25-0.5% |
| Filling speed | 10 – 100 times per min | 20 – 60 times per min | 10 – 50 times per min |
| Power supply | 3P AC208-415V 50/60Hz | ||
| Total Power | 0.5kw | 1.1kw | 1.3kw |
| Total Weight | 70kg | 150kg | 260kg |
| Overall Dimensions | 630x570x1000mm | 800x700x1900mm | 800x1200x2150mm |
| Hopper | 10L | 26L | 50L |
