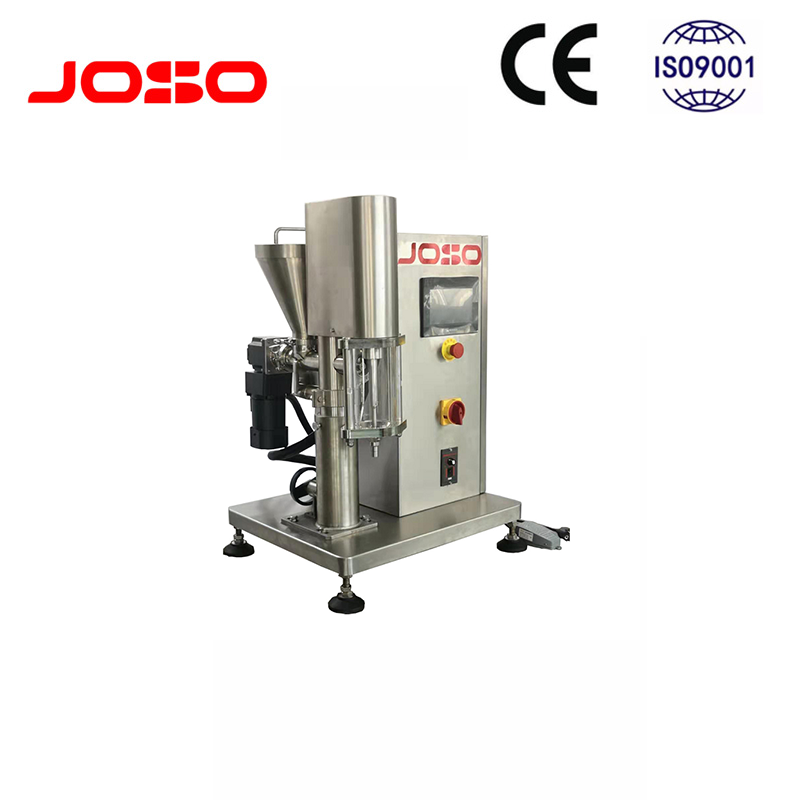

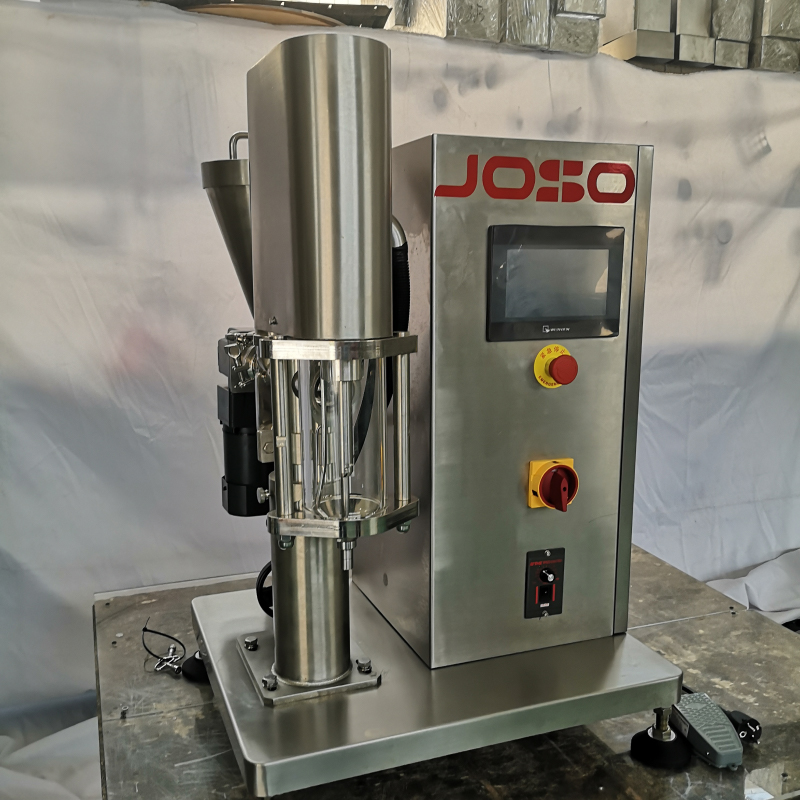

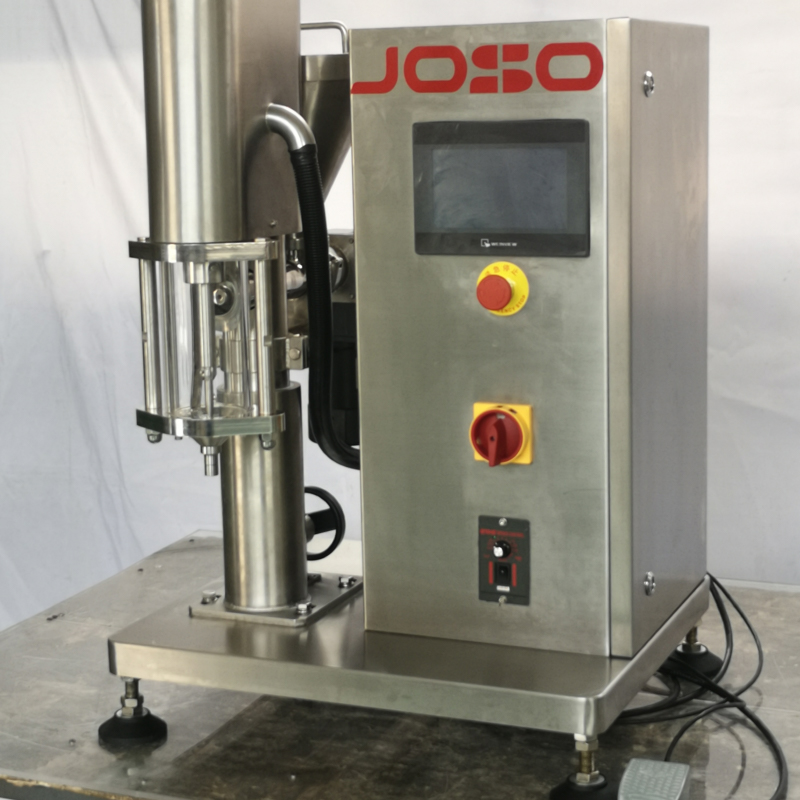

Mini Screw Powder Packing Machine
Mini Screw Powder Packing Machine
This mini screw powder packing machine is ideal for applications requiring precise micro-dosing of powder materials. It is widely used in industries such as pharmaceuticals, food, health supplements, cosmetics, and chemicals. Suitable for both free-flowing and poor-flowing powders, it can be integrated with small bag or bottle packaging lines. Typical materials include protein powder, pharmaceutical powders, spices, nutritional supplements, and cosmetic powders—making it perfect for laboratories, small-scale production lines, and specialty product packaging.
Main Features
The main parts of the machine are made of stainless steel, making it suitable for GMP compliance, food safety certification, and packaging of anti-corrosive chemical products. The stainless steel structure features a quick-release or split hopper design, allowing easy cleaning without the need for tools.
The unique mechanical drive system offers excellent stability and strong overload resistance.
The screw is driven by a servo motor, providing high precision, accurate positioning, high speed, and strong torque.
The stirrer is powered by a Taiwanese gear motor reducer, ensuring low noise, long service life, and maintenance-free operation.
By replacing the auger components, the machine can handle a wide range of materials—from ultra-fine powders to granules.
Main Technical Data
| Model | JS-L1-2 | JS-L2-2 |
| Measurement | spiral rotary filling type | spiral rotary filling type |
| Packing Weight | 0.1g-10g | 0.1g-10g |
| Packing Accuracy | 0.01g | 0.01g |
| Packing Speed | 10-120bags/min | 10-120bags/min |
| Machine power | 400w | 800w |
| Torque | 60w | 60w |
| Compressed Air | 6kg/cm3 0.1cbm/min | 6kg/cm3 0.1cbm/min |
| Power supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Total Weight | 100kg | 150kg |
| Hopper Volume | 1L | 2L |
| Dimension | 252x351x611mm | 252x500x766mm |
