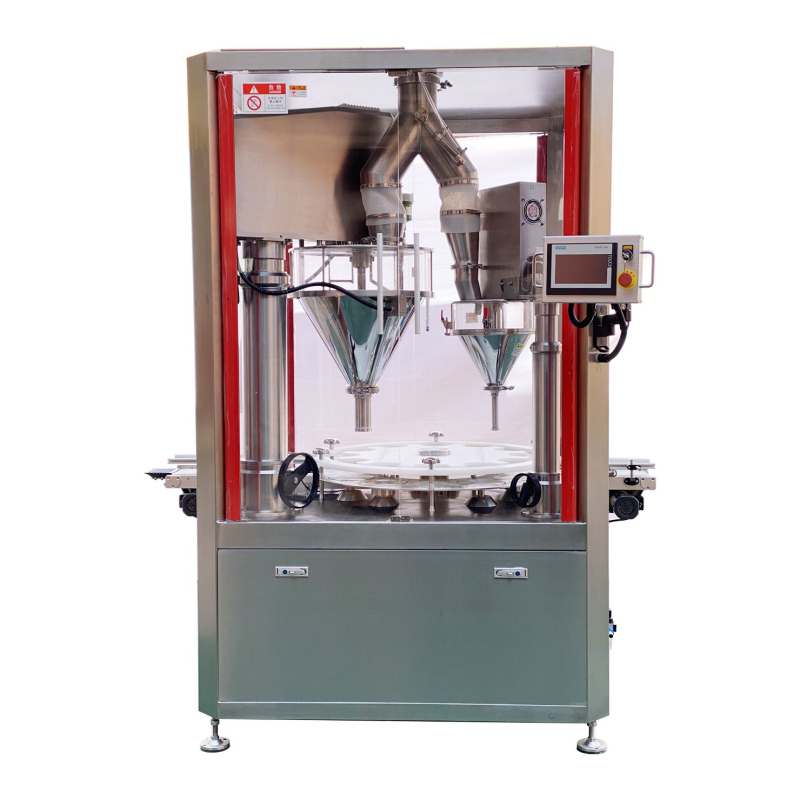

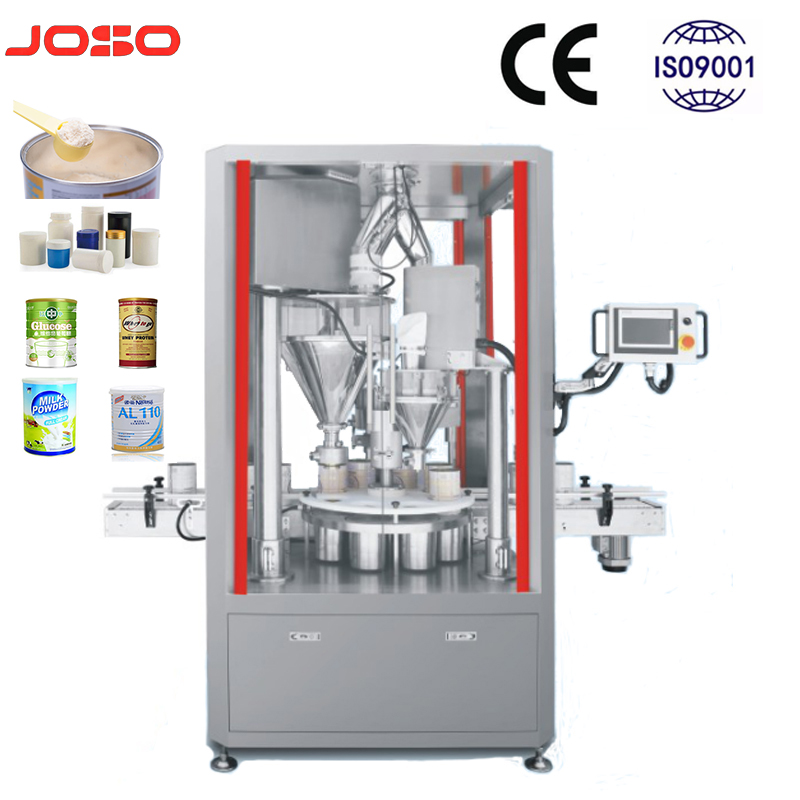

JS-2B3 Powder Weighing Filling Equipment Fully Automatic Double Head Auger Filler Packaging Machine
JS-2B3 Powder Weighing Filling Equipment Fully Automatic Double Head Auger Filler Packaging Machine

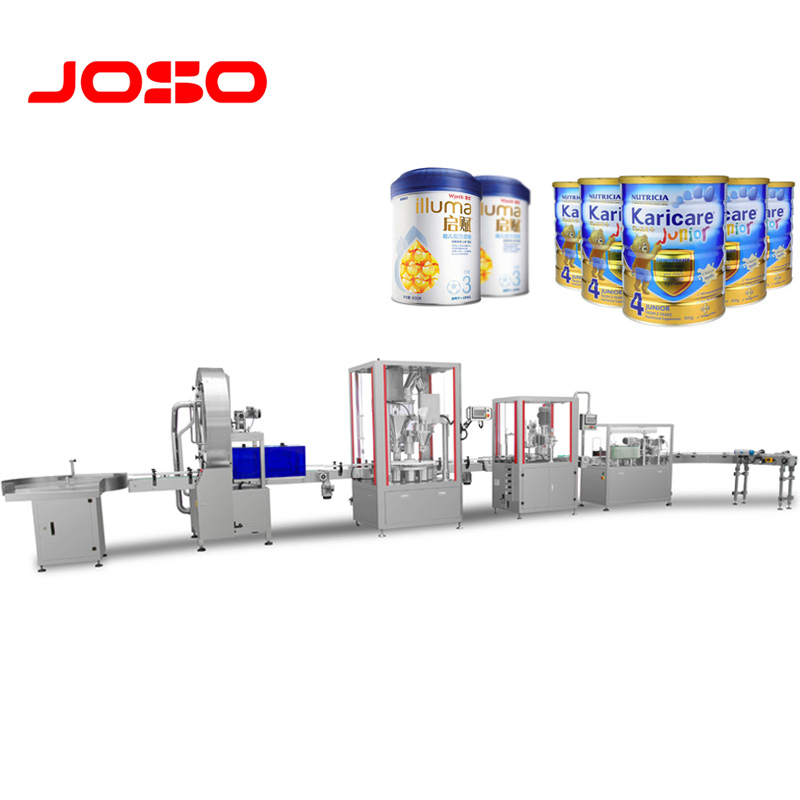

This high-speed double-head linear powder filling machine is ideal for accurately dispensing dry powders into round rigid containers. Commonly used in milk and protein powder production lines, it integrates multi-stage filling, check weighing, and a reject system to ensure high accuracy and minimal product waste. With a filling speed of up to 100 bottles per minute, it is perfect for large-scale operations requiring precision and consistency. The machine is widely applied in food, dairy, nutritional supplement, and pharmaceutical industries, offering stable performance, hygienic design with stainless steel contact parts, and user-friendly operation through a Siemens PLC system.
Main features
1.Four-stage filling with inline checkweigher and reject system for high output, accuracy, and minimal waste.
2.All powder-contacting parts are made of S.S.304 stainless steel, easy to remove for maintenance and changeovers.
3.Siemens PLC and touch screen for easy, intuitive operation.
4.”No Bottle, No Fill” system prevents powder wastage by ensuring filling only occurs when a container is present.
5.High-quality gear motor for stable conveyor drive and reliable operation.
6.High-response weighing system ensures fast canning and precise filling.
7.Pneumatic bottle indexing system synchronized with auger rotation to prevent premature bottle transfer.
8.Dust collection system connects to a vacuum cleaner to maintain a clean production environment.
Main Technical Data
| Model | JS-2B3 |
| Filling Weight | 10 – 5000g |
| Container Size | Φ60-135mm; H 60-260mm |
| Filling Accuracy | ≤500g The tolerance |
| Filling Speed | 25-55 cans/min |
| Power Supply | P AC208-415V 50/60Hz |
| Total Power | 3.5 kw |
| Total Weight | 600kg |
| Overall Dimension | 2800x1200x2300mm |
| Hopper Volume | 50L(Main) 25L (Assist) |
