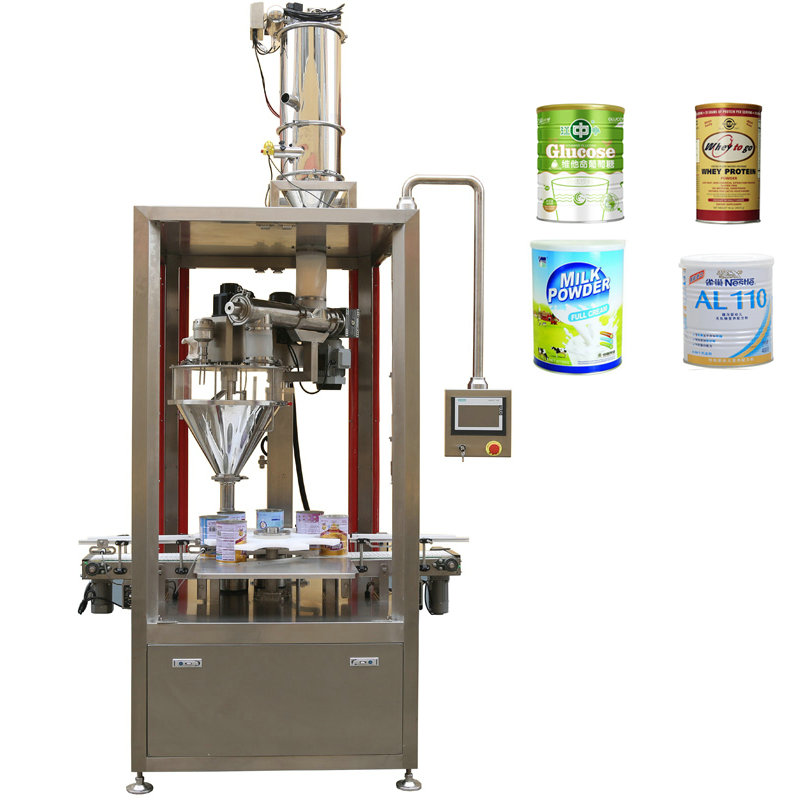

JS-2B2 Rotary Stainless Steel Powder Screw Filling Packaging Machine
JS-2B2 Rotary Stainless Steel Powder Screw Filling Packaging Machine
The machine is suitable for dry syrup, talcum, spices powder, flour Free Flowing Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder, Pesticides Powder,etc.
Main features
1.Total compact design model. Split hopper for easy clean.
2.The machine are made of S.S.304 and easily removable for maintenance changeover.
3.Siemens PLC and Siemens Touch screen, easy to operate.
4.NO BOTTLE, NO FILL” System eliminates wastage of costly powder.
5.Filling controlled by servo system with adjustable speed and high accuracy
outcome.
6.With inline filled cans check weigher and reject conveyor to assure high accuracy output.
7.Different size star wheel to accommodate different container size ,featured with
easy maintenance and changeover .
Main technical data
| Model | JS-1A2 | JS-2B2 |
| Filling weight | 10-500g | 10-2000g |
| Container Size | φ50-180 H：50-350mm | φ50-180 H：50-350mm |
| Filling Accuracy | ≥±0.3-1% | ≥±0.3-1% |
| Filling Speed | 20 – 50 bottles/min | 20 – 50 bottles/min |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Air Supply | 6-8 kg/cm2 0.2m3/min | 6-8 kg/cm2 0.2m3/min |
| Total Power | 2Kw | 2Kw |
| Total Weight | 700kg | 800kg |
| Overall Dimensions | 2500x1250x2300mm | 2500x1250x2300mm |
| Hopper Volume | 25L | 50L |
