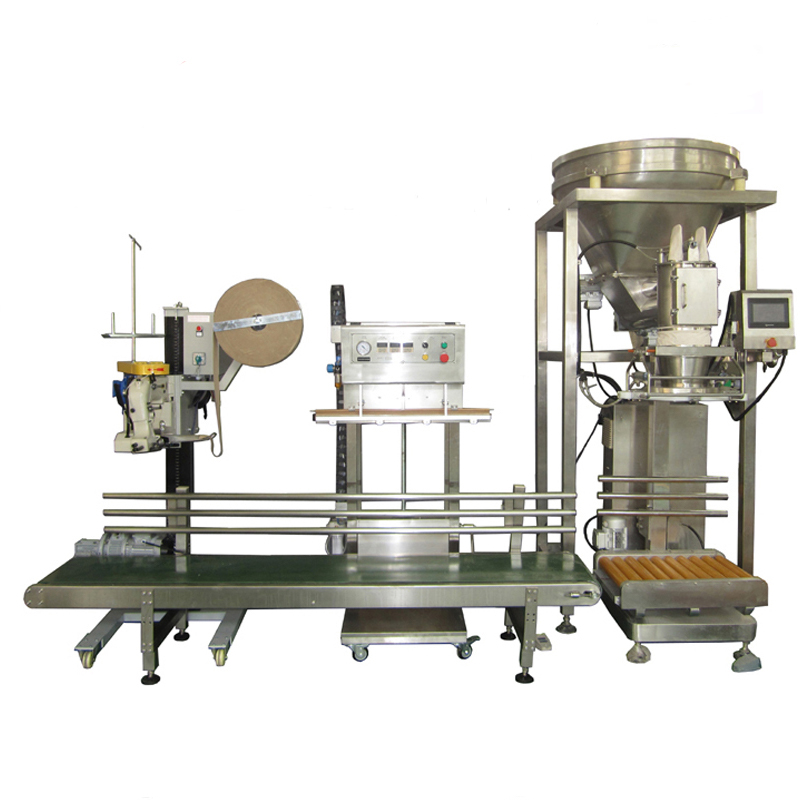

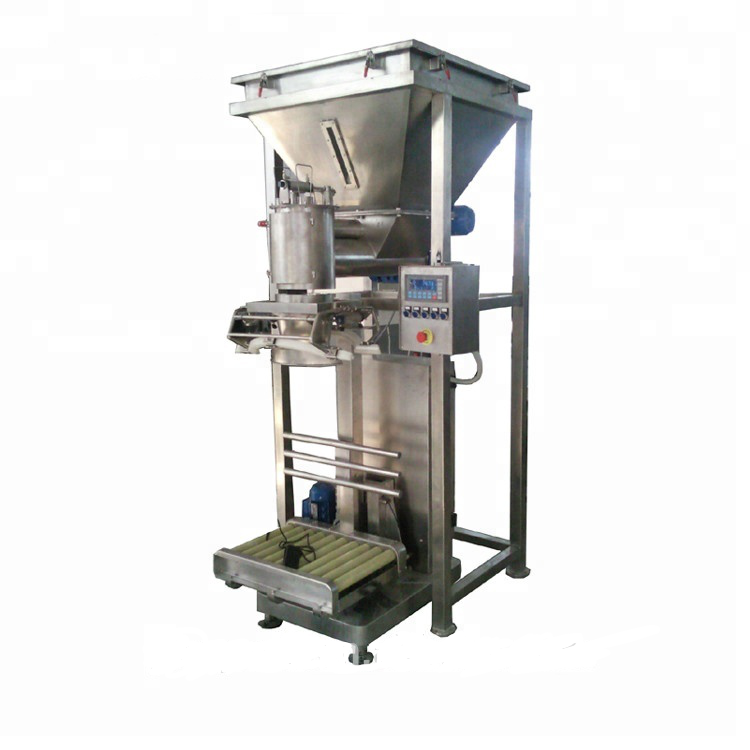

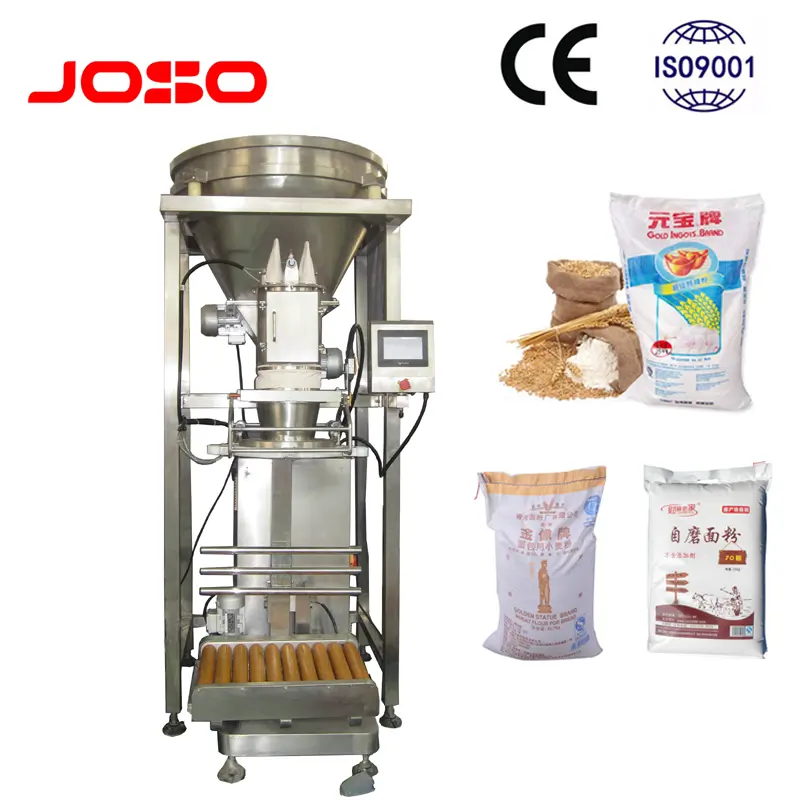

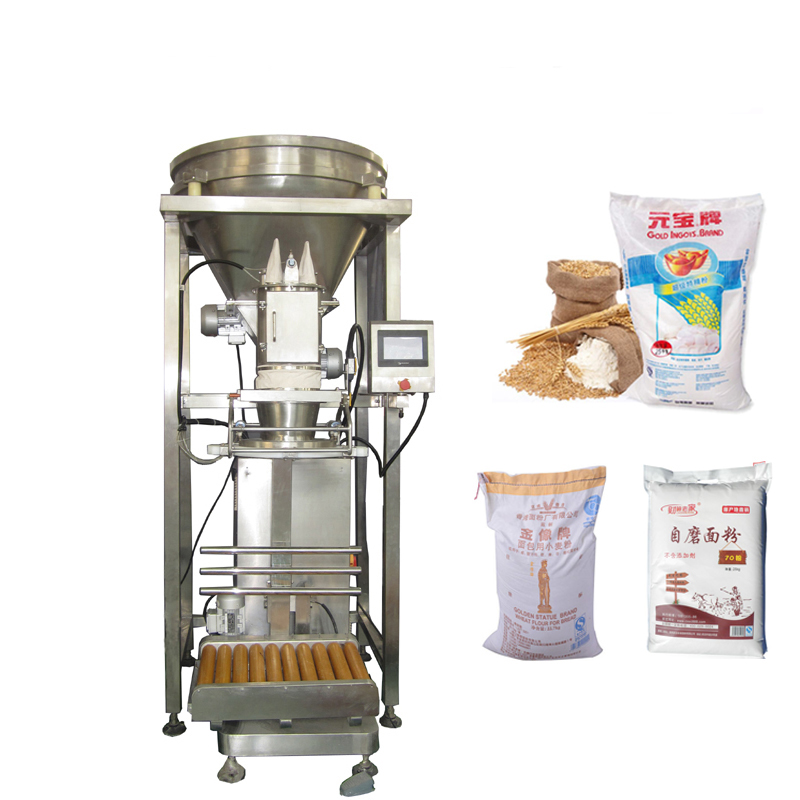

JS-1C1 Grain Precise Semi-automatic Auger Filler Screw Packaging Machine
JS-1C1 Grain Precise Semi-automatic Auger Filler Screw Packaging Machine
The JS-1C1 grain packing machine is ideal for industries requiring accurate and efficient packaging of powder or granular materials into large bags (5–25kg). It is widely used in sectors such as food, pharmaceuticals, chemicals, plastics, and construction materials. With its fully automated functions—including filling, weighing, sewing, and conveying—it is perfectly suited for packaging products like milk powder, rice flour, coffee, sugar, glucose, solid beverages, pharmaceuticals, pesticides, and various additives. Its high precision auger filler ensures consistent weight control and minimal material waste.
Main Features
Constructed with SUS 304 Stainless Steel: Durable, corrosion-resistant, and easy to clean, ensuring compliance with hygiene standards.
Advanced PLC Touchscreen Control: Offers high precision, intuitive operation, and easy parameter adjustment.
Servo Motor-Driven Auger System: Ensures stable operation with high filling accuracy, suitable for fine powder applications.
Semi-Automatic Operation: Equipped with a digital display for straightforward user control and monitoring.
Integrated Weighing Sensor & PLC System: Guarantees accurate weight measurement and reliable performance.
Dust-Free Filling Design: Effectively prevents powder leakage, maintaining a clean and safe working environment.
Compatible Auxiliary Equipment: Can be combined with mixers, feeding machines, sealing machines, and other devices for a fully integrated packaging line.
Technical Parameters
| Model | JS-1C1-M |
| Packing Weight | 5-50kg |
| Packing Accuracy | ≤±0.2% |
| Packing Speed | 3 bags per min |
| Power Supply | 3P AC208 – 415V 50/60Hz |
| Air Pressure | 0.5-0.8mpa |
| Total Power | 3.9kw |
| Total Weight | 400kg |
| Overall Dimension | 4300×1300×2500mm |
