High Speed Automatic Bag Filling Corn Wheat Flour Powder Packing Machine
High Speed Automatic Bag Filling Corn Wheat Flour Powder Packing Machine

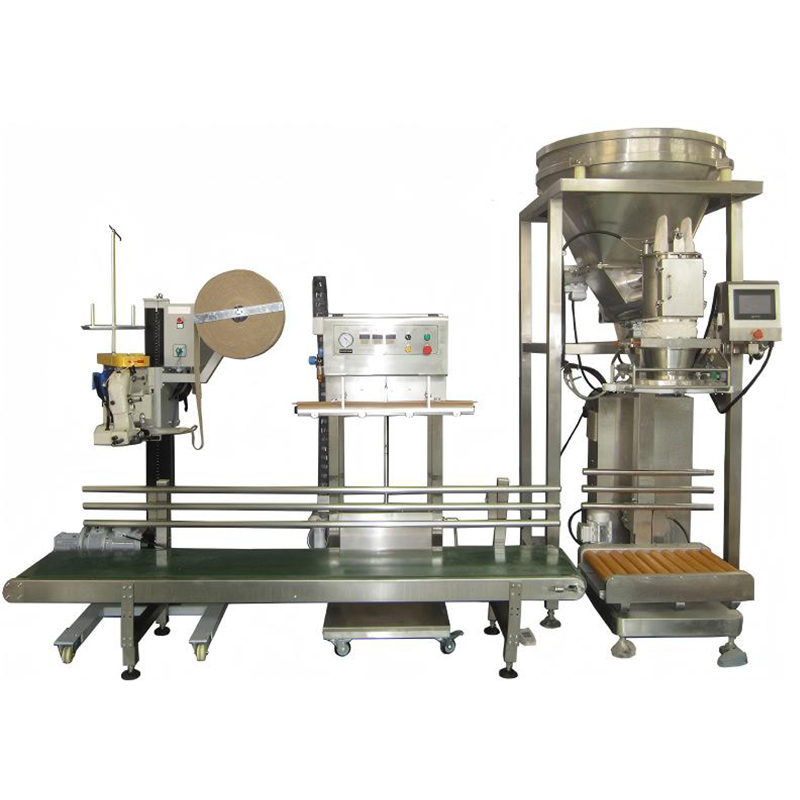

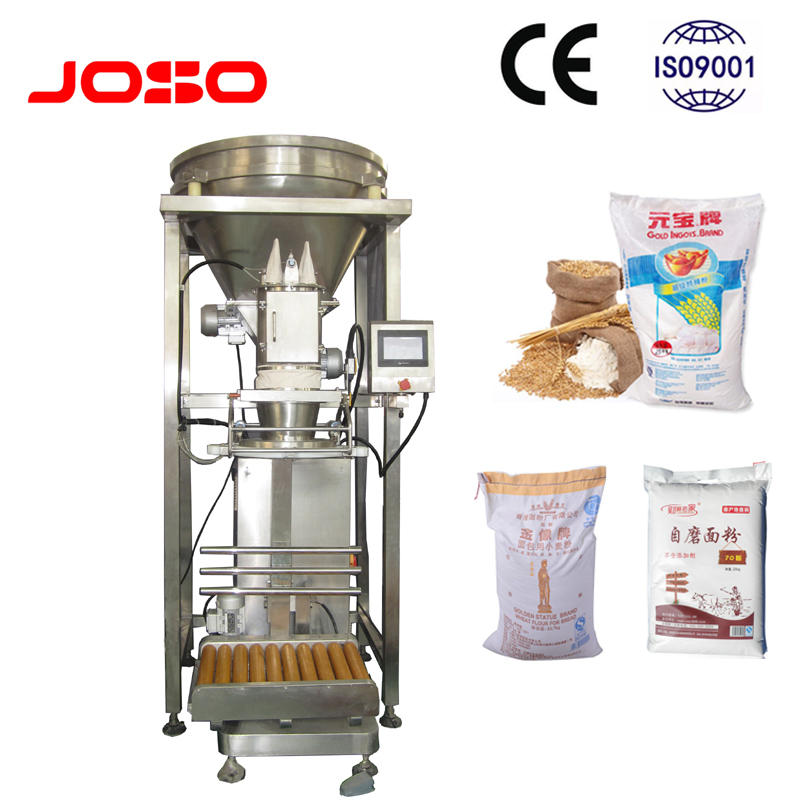

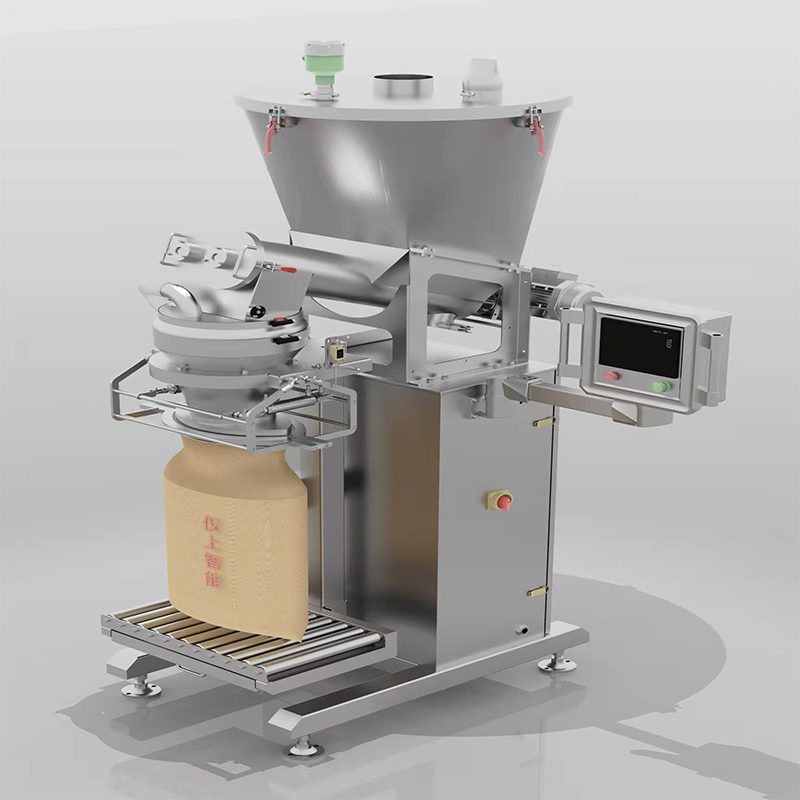

This semi-automatic packing machine is ideal for filling and sealing powder materials into 5–25kg sacks, woven bags, or big bags. It is widely used in industries such as food, pharmaceuticals, chemicals, and building materials—for products like milk powder, cereals, sugar, glucose, coffee, and pesticides.
Main features
1.Made of SUS 304 stainless steel – durable, corrosion-resistant, and easy to clean.
2.Equipped with a PLC touchscreen control system – user-friendly interface with high precision.
3.Servo motor-driven screw auger – ensures stable operation and accurate filling.
4.Semi-automatic design with digital display – easy to operate and maintain.
5.Integrated weighing sensor and PLC control – for reliable and precise measurement.
6.Dust-free filling process – keeps the work environment clean.
7.Optional auxiliary equipment available – including mixing, feeding, and sealing machines.
Main Technical Data
| Model | JS-1C1-M |
| Packing Weight | 5-50kg |
| Packing Accuracy | ≤±0.2% |
| Packing Speed | 3 bags per min |
| Power Supply | 3P AC208 – 415V 50/60Hz |
| Air Pressure | 0.5-0.8mpa |
| Total Power | 3.9kw |
| Total Weight | 400kg |
| Overall Dimension | 4300×1300×2500mm |
