Food Grade Stainless Steel Servo Control Measuring Head Screw Auger Filler
Food Grade Stainless Steel Servo Control Measuring Head Screw Auger Filler
This machine is ideal for automatic weighing and filling of powder and ultra-fine powder materials. Commonly used with a bag-making machine, it forms a complete packaging system suitable for low or medium fluidity materials. Widely applied in food, pharmaceutical, chemical, and agricultural industries for packing milk powder, sugar, coffee, dextrose, pesticides, additives, and similar products.
Main features
1.Quick-disconnect hopper design – allows easy opening and cleaning without tools.

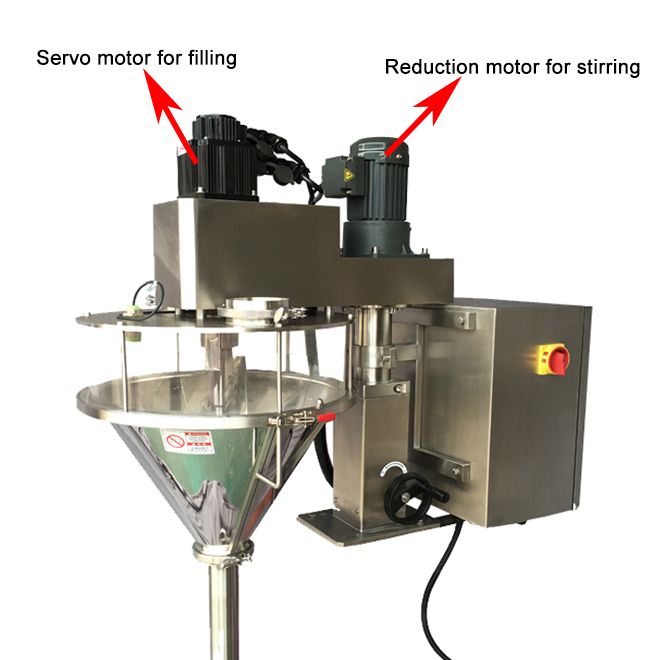

2.Servo motor and drive system – ensures precise and stable auger control.
3.Constructed entirely from SUS 304 stainless steel – easy to clean and suitable for quick changeovers.
4.Unique mechanical drive system – offers strong overload capacity and excellent stability.
5.Interchangeable auger components – support different filling weight ranges.
6.Basic model – does not include PLC, control cabinet, or touchscreen.
Main Technical Data
| Model | JS-L1-15 | JS-L1-26 | JS-L1-50 | JS-L1-65 |
| Packing Weighing | 0.2-100g | 1-500g | 10-1000g | 10-3000g |
| Packing Accuracy | ≦±2% | ≦100g (≦±0.5-1g) >100g (≤±0.3-1%) | ≦100g (≤±0.5-1g) >100g (≦±0.5-1g) | ≤±0.3-1% |
| Total Power | 0.5kw | 1.1kw | 1.3kw | 2kw |
| Weight | 55kg | 130kg | 150kg | 250kg |
| Dimension(L*W*H) | 660*560*770 | 520*580*950 | 540*795*1030 | 1070*576*950 |
| Hopper Volume | 15L | 26L | 50L | 65L |
