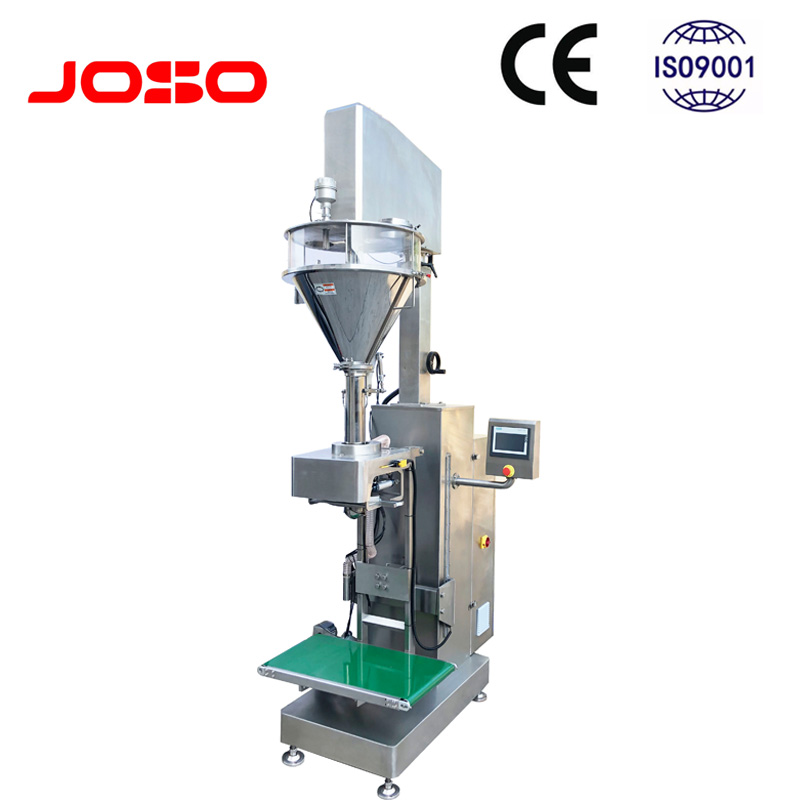

Dry Powder Flour Sugar Salt Spices Food Coffee Bag Particle Weighing Filling Packing Machine
Dry Powder Flour Sugar Salt Spices Food Coffee Bag Particle Weighing Filling Packing Machine
This machine is ideal for high-precision packaging of ultra-fine powders in industries such as chemicals, fire safety, food additives, and printing. It is widely used for filling toner, fire extinguisher powder, additives, and other superfine materials. Designed to meet GMP standards, the machine ensures accurate, dust-free filling and is suitable for various bag or bottle sizes with adjustable components and user-friendly operation.

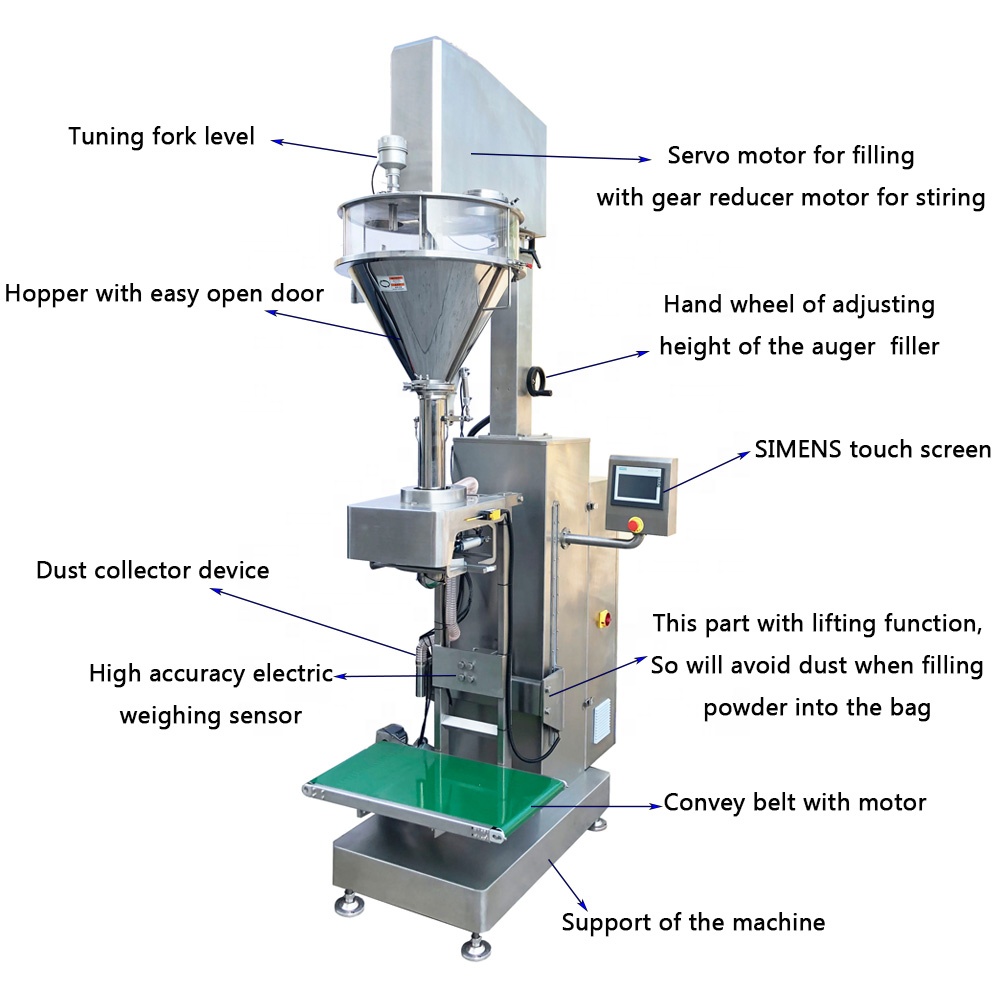

Main features
1.Equipped with a weight sensor beneath the container platform to enable fast and slow filling modes based on preset weight.
2.Ensures high-precision filling and consistent packaging accuracy.
3.Tray lifting is driven by a servo motor, with freely adjustable lifting speed for better control.

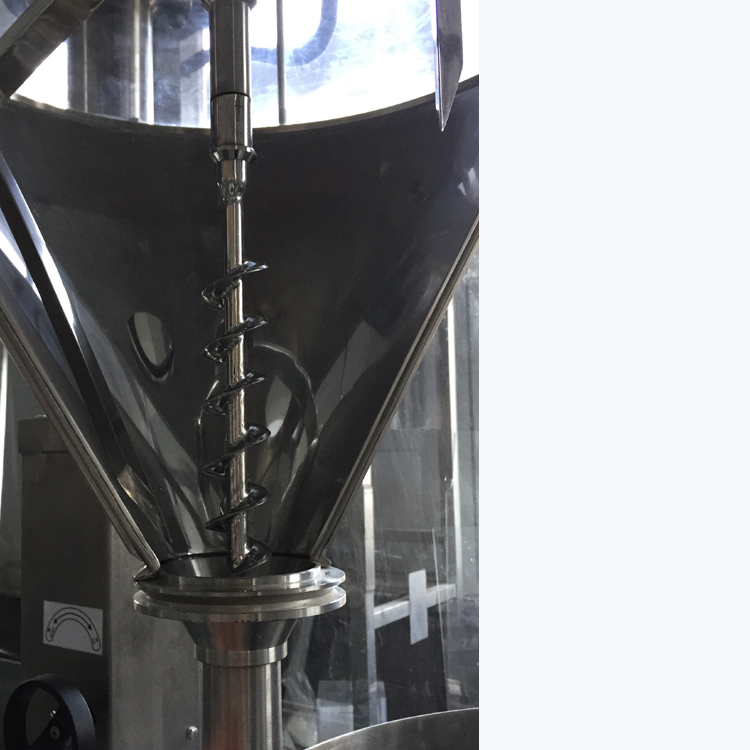

4.Auger screw is controlled by a servo motor and drive system, providing stable and accurate performance.
5.User-friendly PLC touchscreen interface for easy operation and parameter adjustment.
6.Made of stainless steel with a split-type hopper design for easy cleaning and maintenance.
7.The filling head features an adjustable height mechanism to accommodate various container sizes.
8.Fixed screw design ensures that the material properties remain unchanged during filling.
9.Workflow: Manually place bottle or bag → Automatic lift → Fast fill → Simultaneous descent and slow fill → Reach target weight → Stop → Manually remove container.
10.Detailed process: Manually place bag → Pneumatic clamping → Lift → Fast fill → Descend → Slow fill near target weight → Stop → Release bag → Manual removal.
11.The filling nozzle descends deep into the container during filling; as the bag lowers slowly, it reduces inertia effects and dust generation.
- The up-down platform driven by servo motor minimizes airborne dust during the filling process.
Main Technical Data
| Model | JS-2C-65 | JS-2C-100 |
| Packing Weight | 1-10kg | 1-30kg |
| Packing Accuracy | 0.1-10kg ≤±2g ≥1kg ≤±0.1-0.2% | 1-20kg ≤±0.1-0.2% ≥20kg ≤±0.05-0.1% |
| Packing Speed | 3-15bags/min | 2-10bags/min |
| Power Supply | 3P AC208 – 415V 50/60Hz | |
| Total Power | 2.6kw | 3.1kw |
| Total Weight | 400kw | 550kw |
| Overall Dimension | 1220x950x2380 | 1240x950x2750 |
| Hopper Volume | 65L | 100L |
