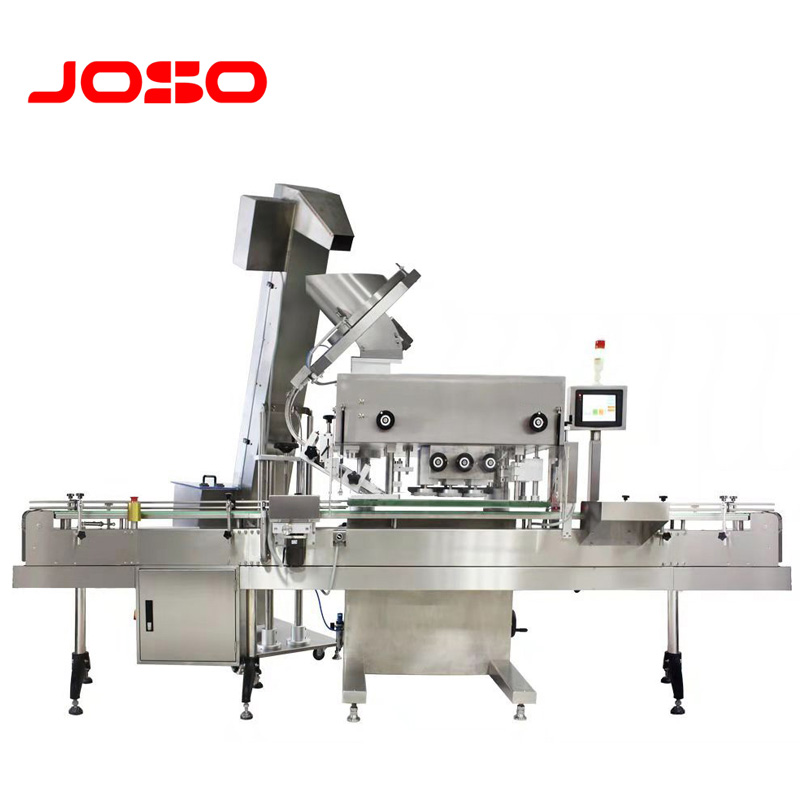

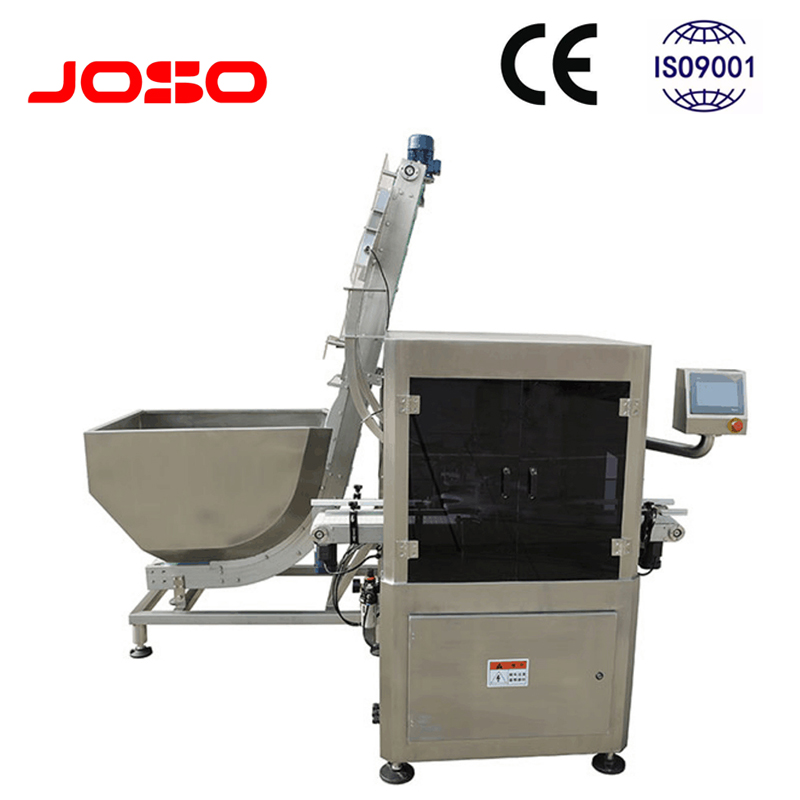

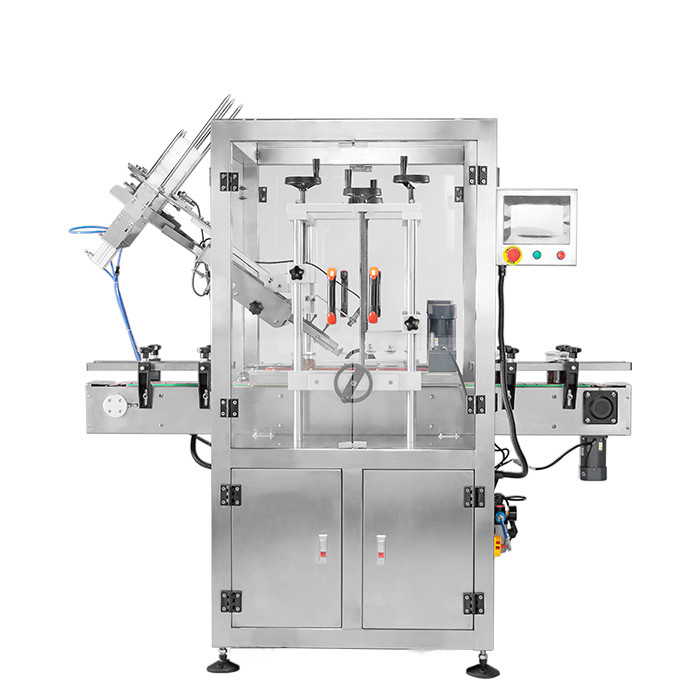

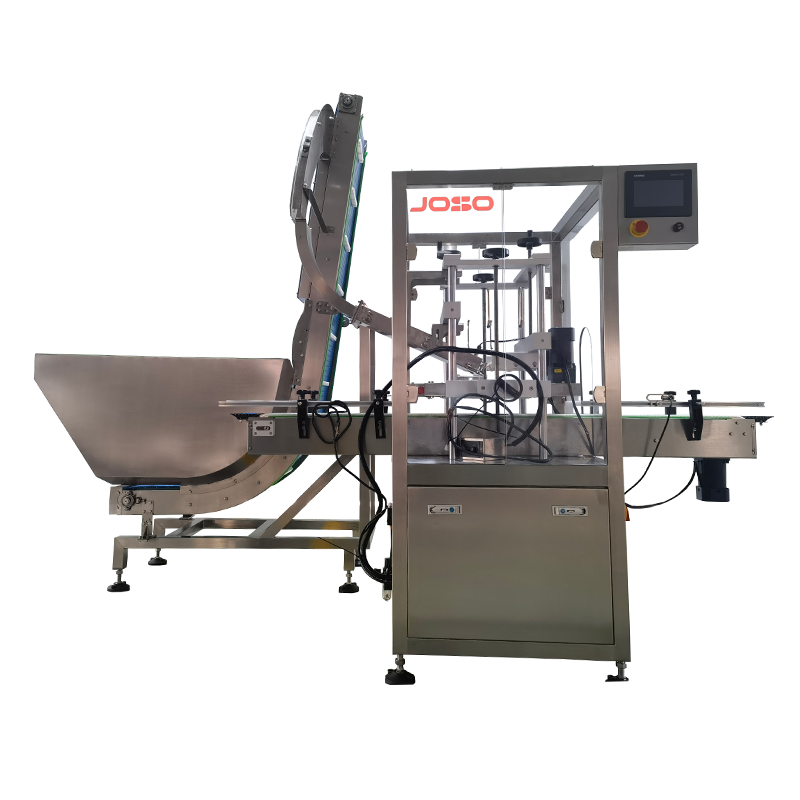

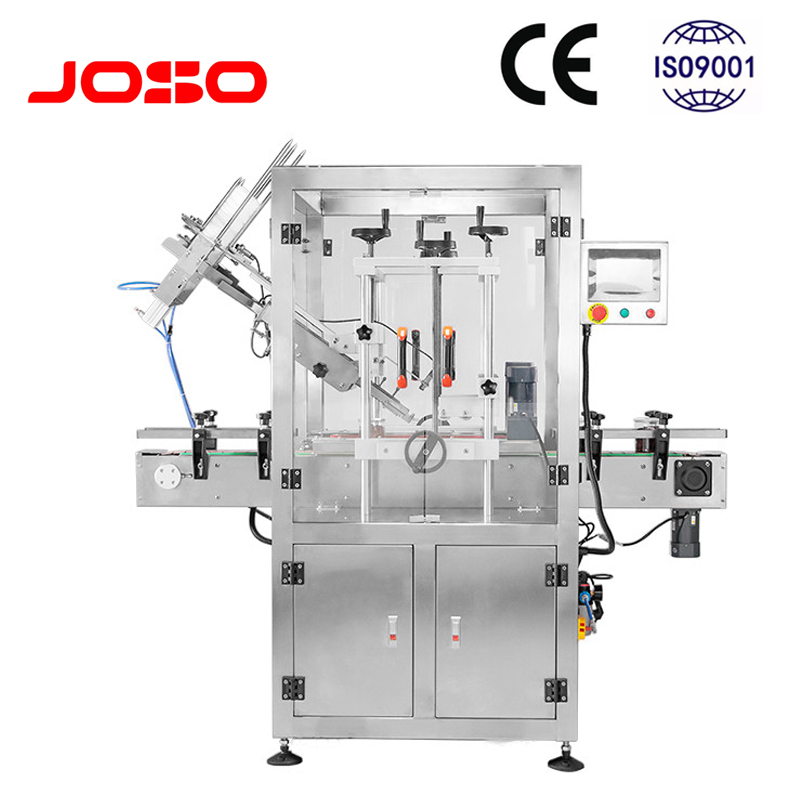

Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine

Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine
Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine - Image 2
Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine - Image 3
Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine - Image 4
Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine - Image 5

Automatic Plastic Caps Screw Glass Food Container Closing Bottle Capping Machine

This machine is ideal for capping containers with high plastic lids, especially those designed to hold a spoon inside the cap. It integrates cap unscrambling, feeding, and capping into a single automated process, making it highly efficient for production lines. Suitable for use in the food, pharmaceutical, and nutritional supplement industries, it is commonly applied to products like milk powder, protein powder, or other powdered goods packaged in jars or cans. With easy mold replacement and equipment adjustment, it accommodates various cap specifications, making it perfect for flexible, high-volume production environments.

Products
Fully Automatic Filling Production Line
Multi Channel VFFS Packaging Machine for Strip Bag
Large Bag Packaging Machine Production Line
Packaging Machine for Big Bags
Automatic Filling Machine for Bottles Cans Tins
Automatic Filling Machine for Bags
Automatic Sealing Machine for Cans Tins
Semi Automatic Packaging Machine for Bottles Bags
Screw Metering Machine
Powder Mixer
Canning Packaging Prodution Line Supporting Equipment
Other Machine for Packaging Prodution Line

Main Features

  1. Capping speed: 35–50 cans per minute

  2. Can specifications: Diameter 125–130 mm, Height 150–200 mm

  3. Lid hopper dimensions: 1050 × 740 × 960 mm

  4. Lid hopper capacity: 300 liters

  5. Power supply: 3-phase AC 208–415V, 50/60Hz

  6. Total power consumption: 1.42 kW

  7. Air supply: 6 kg/cm², 0.1 m³/min

  8. Overall dimensions: 2350 × 1650 × 2240 mm

  9. Conveyor speed: 14 meters per minute

Main Technical Data



Capping speed30 – 50 cans/min
Can specificationφ125-130mm  H150-200mm
Lid hopper dimension1050×740×960mm
Lid hopper volume300L
Power supply3P AC208-415V 50/60Hz (Can be customized)
Total power1.42kw
Air supply6kg/m2 0.1m3/min
Overall dimensions2350×1650×2240mm
Conveyor speed14m/min
Total weight450kg
