Automatic Seal Sachet Protein Milk Powder Bag Vertical Filling Packing Machine
Automatic Seal Sachet Protein Milk Powder Bag Vertical Filling Packing Machine

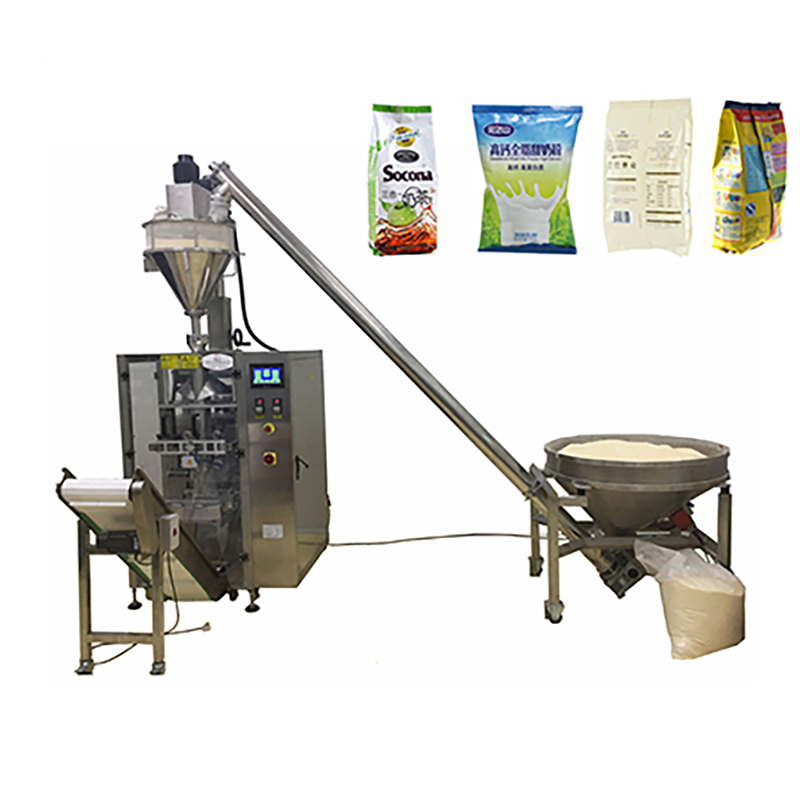

This fully automatic packing machine is ideal for food, pharmaceutical, and chemical industries requiring efficient, precise packaging of powdered or granular products. It handles the entire process—from measuring and filling to sealing and printing—making it perfect for packaging milk powder, protein powder, coffee, sugar, dextrose, and more. Its auger filler ensures accurate dosing, while the PLC control and touch screen interface allow easy operation and troubleshooting. Suitable for both pillow-type and stand-up bags, this machine is especially useful for production lines needing consistent output, hygiene, and reduced labor costs in high-volume packaging environments.
Main features
1.Fully automatic Measure-Form-Fill-Seal system for high efficiency and ease of use. The machine completes measuring, bag making, filling, sealing, date printing, and product output automatically.
2.Equipped with an auger filler for precise measurement, suitable for a wide range of powders and granules. The auger dosing tool can be easily replaced to accommodate different filling weights.
3.PLC control system with a touch screen and user-friendly interface ensures easy operation. Built-in error indication system helps operators quickly identify and resolve issues.
4.Servo motor-driven film drawing and pneumatic control system ensure accurate control of bag length.
5.Intelligent temperature controller maintains stable sealing temperature for clean and secure seals.
6.Automatic alarm system alerts operators to issues such as open doors, missing film rolls, or ribbon errors.
7.Multiple bag styles available: pillow-type and stand-up pouches, with optional gusset and punch configurations.
Main Technical Data
| Model | JS-320 | JS-420 | JS-520 | JS-720 |
| Hopper Volume | 26L | 50L | 65L | |
| Packing weight | 1-500g | 10-1000g | 100-5000g | |
| Packing Accuracy | ±0.2-0.5% | |||
| Packing Speed | 30-50bags/min | 25-45bags/min | ||
| Bag Sizes | (W)50-150mm (L)50-200mm | (W)80-200mm (L)50-300mm
| (W)90-250mm (L)80-350mm
| (W)110-350mm (L)100-420mm
|
| Power Supply | 3P AC208-415V 50/60Hz | |||
| Working pressure | 0.4-0.6Mpa | |||
| Gas Consumption | 100L/Min | 150L/Min | 180L/Min | 210L/Min |
| Total Power | 3kw | 3.7kw | 4.2kw | 5.4kw |
| Total Weight | 350kg | 580kg | 730kg | 870kg |
| Overall Dimension | 1500x800x2100mm | 1500x950x2500mm | 1500x1160x2600mm | 1800x1300x2800mm |
