Product Introduction：

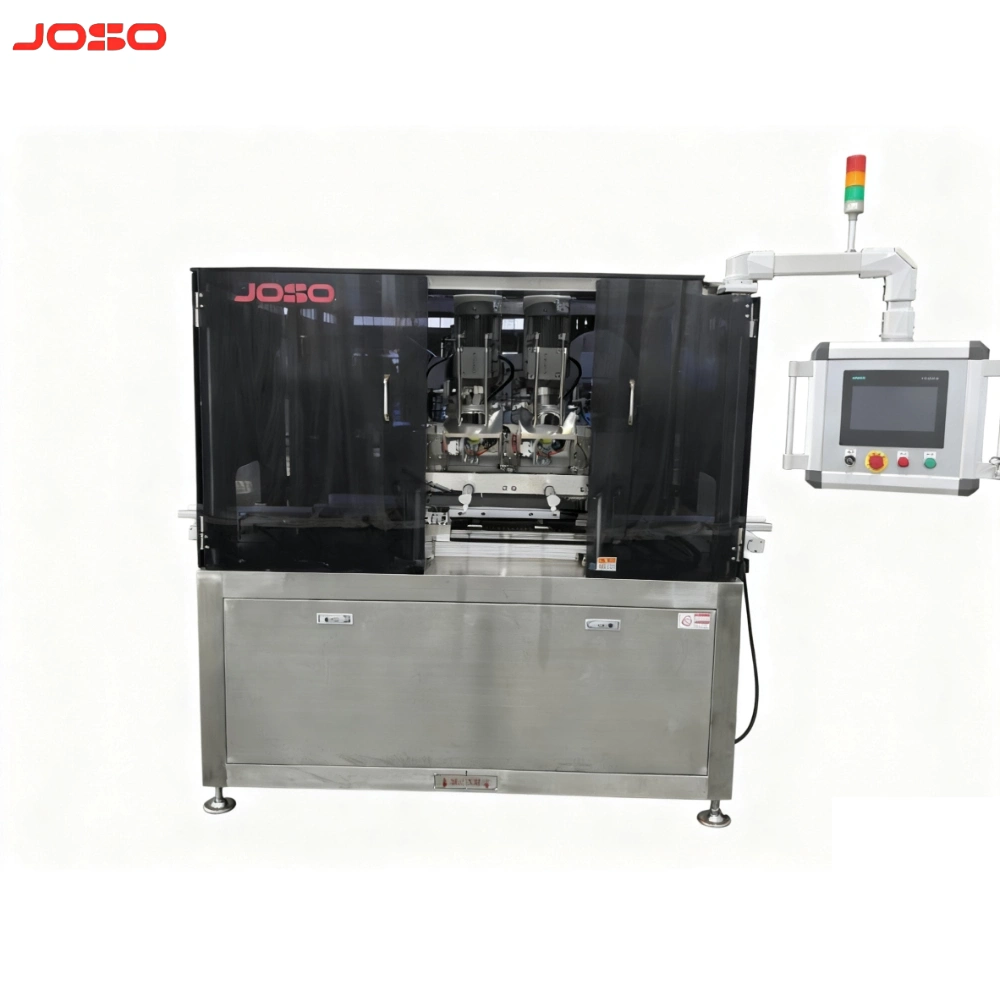

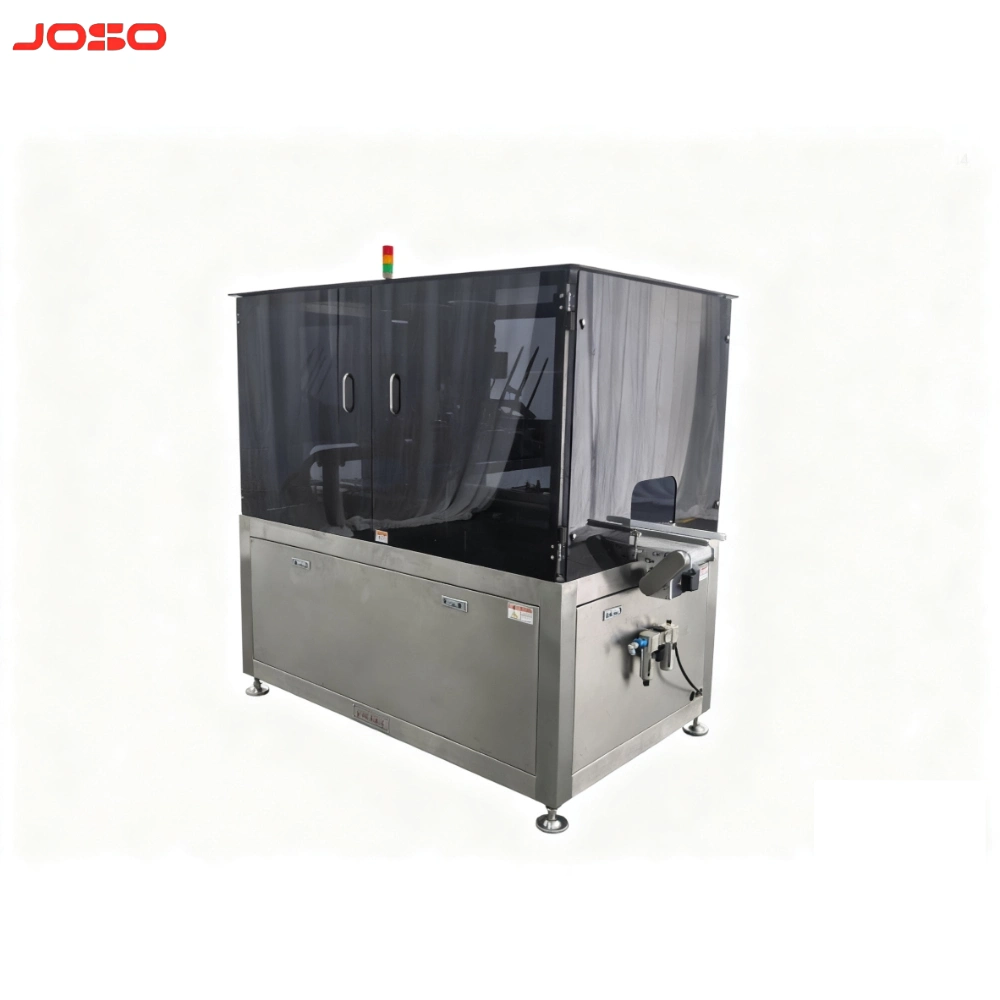

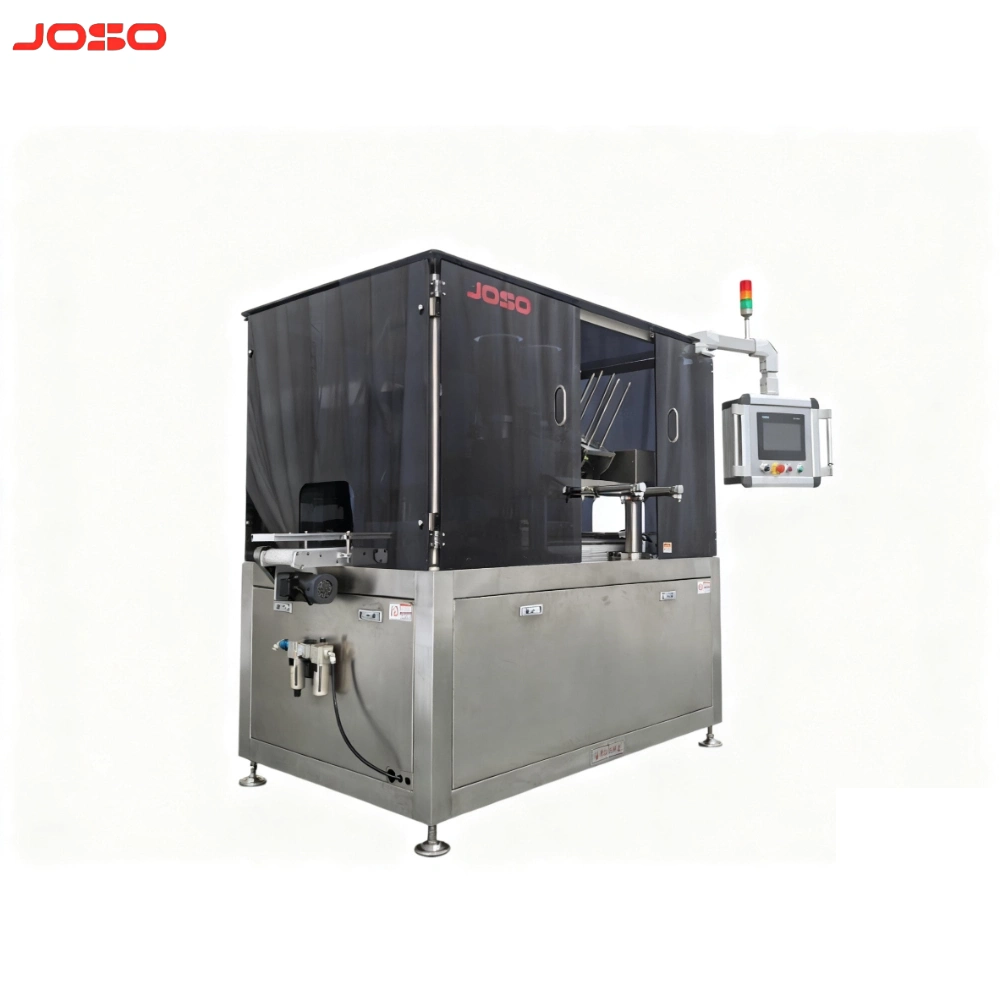

The vacuum nitrogen filling and can sealing machine is ideal for sealing a wide range of circular cans, including tin, aluminum, plastic, and paper cans. Commonly used in the food, dairy, and health product industries, such as milk powder, health supplements, and seasonings, it helps extend product shelf life by reducing oxygen content. The machine operates with high automation, providing consistent, tight sealing and adjustable negative pressure to prevent “buckled cans.” With a sealing capacity of 6-14 cans per minute, it is perfect for integration into high-efficiency automatic canning production lines.
Product parameters：
| Model | JS-S120-N | JS-D120-N |
| Canned seal heads | 1 | 2 |
| Speed | 6-7cans/min | 8-14cans/min |
| Remaining oxygen | ≤3% | ≤3% |
| Air consumption | 300L/min | 500L/min |
| Pressure of air | 0.5-0.6Map | 0.5-0.6Map |
| Need Nitrogen | 10cbm/hour/set | 10cbm/hour/set |
| Nitrogen | Purity >99.99%,Pressure:0.4Mpa | Purity >99.99%,Pressure:0.4Mpa |
| Can size | φ73─φ131mm/H100-190mm | φ73─φ131mm/H100-190mm |
| Power supply | 3Phase 208-415V 50/60Hz | 3Phase 208-415V 50/60Hz |
| Total power | 4kw | 6kw |
| Overall dimension | 1800 x 800 x 1700mm | 2150 x 1250 x 1700 |
| Total weight | 500kg | 800kg |
